With a 3 ft, 4 in track included this circular saw is hard to ignore. Power and precision at the forefront of its design, the R185CCSX ensures accuracy and reliability to get the job done faster, smoother and safer than ever before. True value for money with 3 years limited warranty.

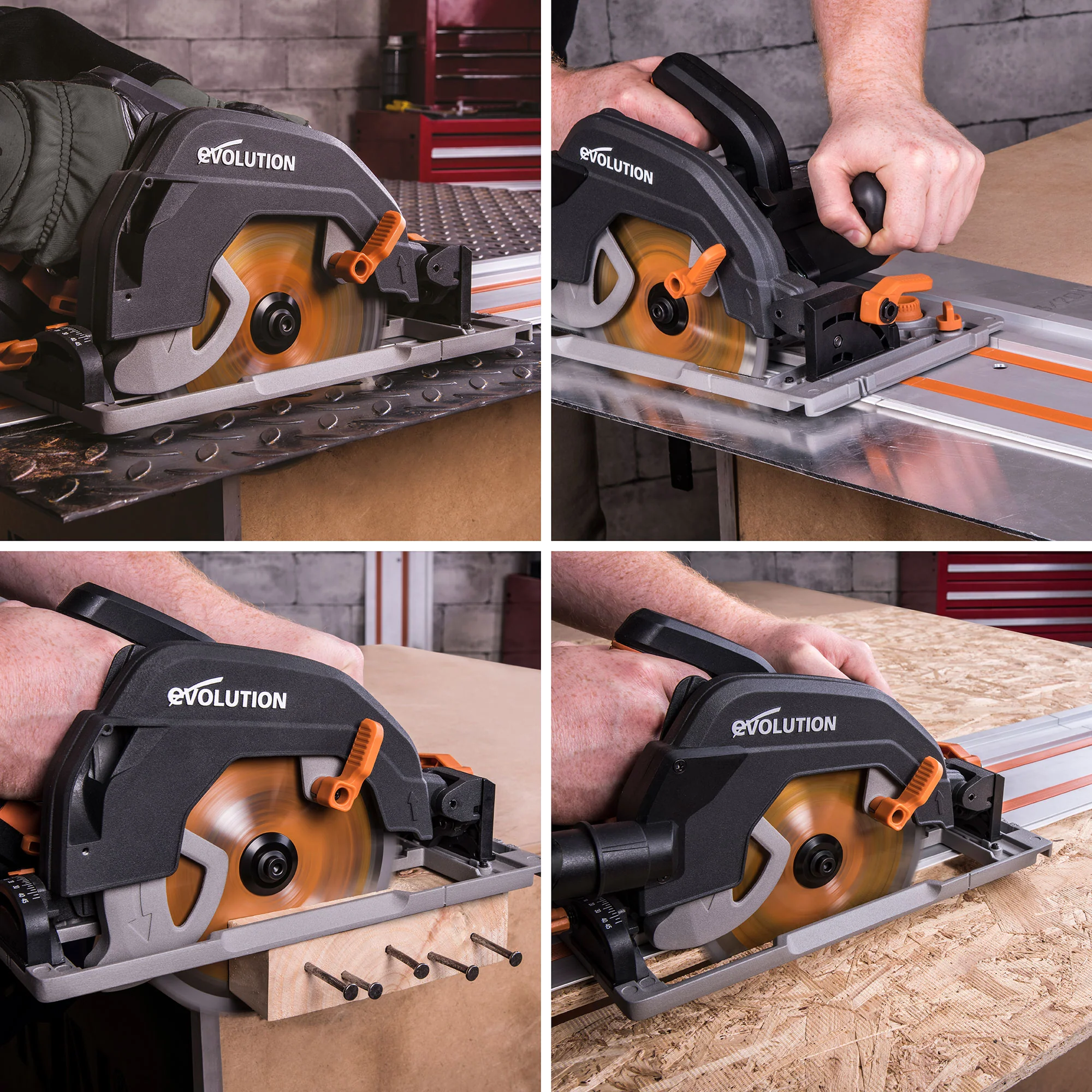

• Multi-Material cutting technology. One saw, one blade, cuts all.*

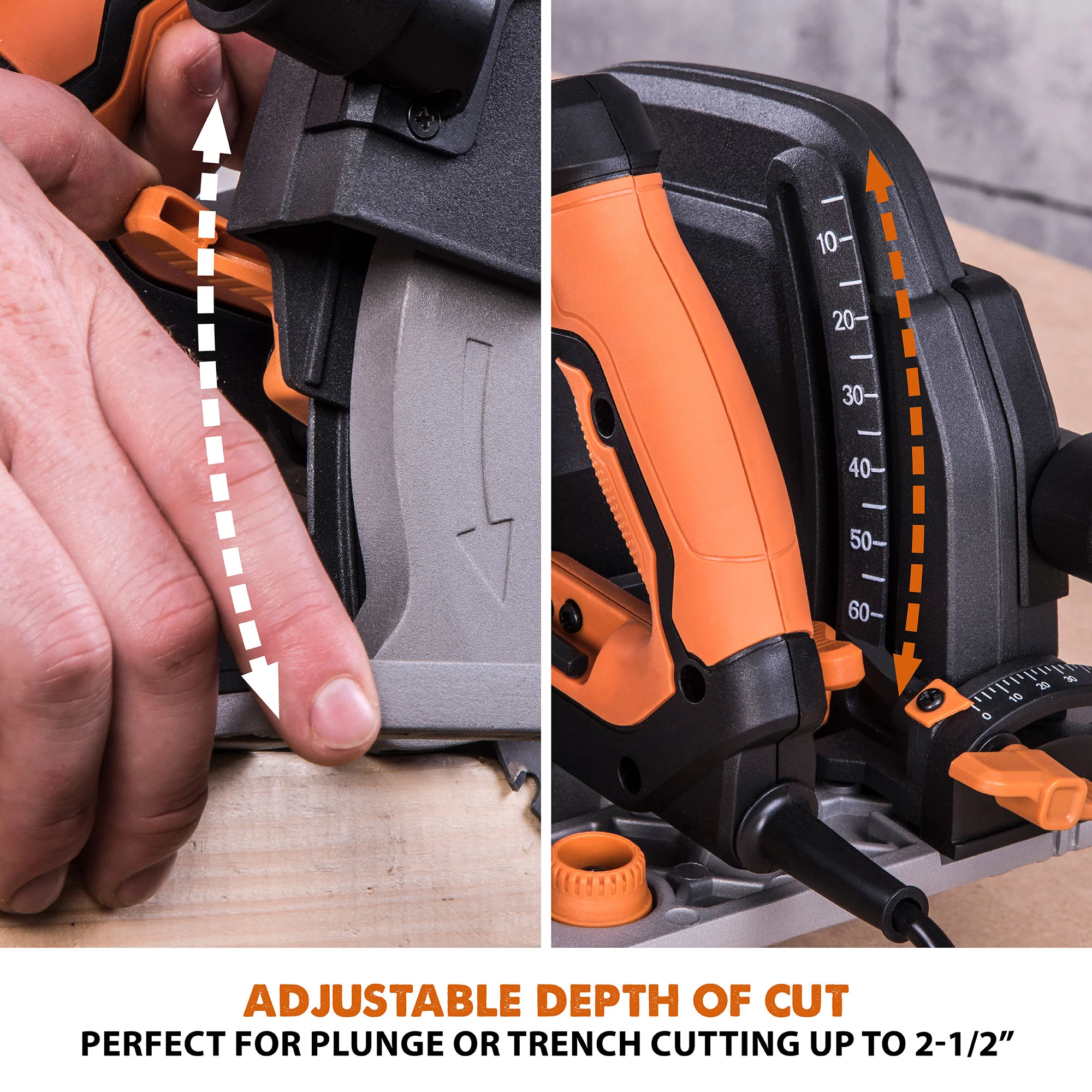

• Accurate cutting with adjustable 2-1/2 inch depth of cut - perfect for trench cutting.

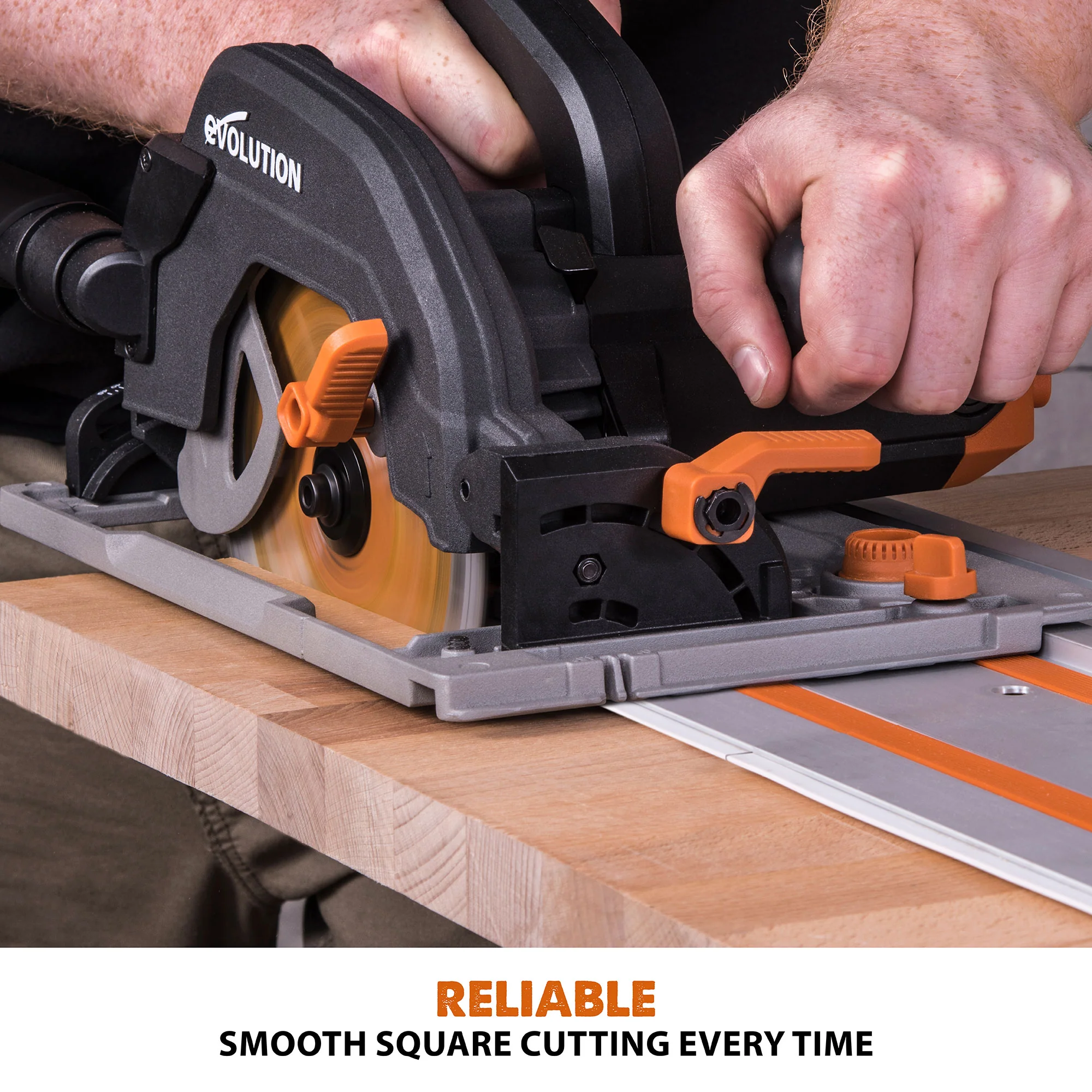

• Reliable smooth square cutting every time in a variety of materials.
• Powerful 15A hi-torque motor with an optimized gearbox & blade system.

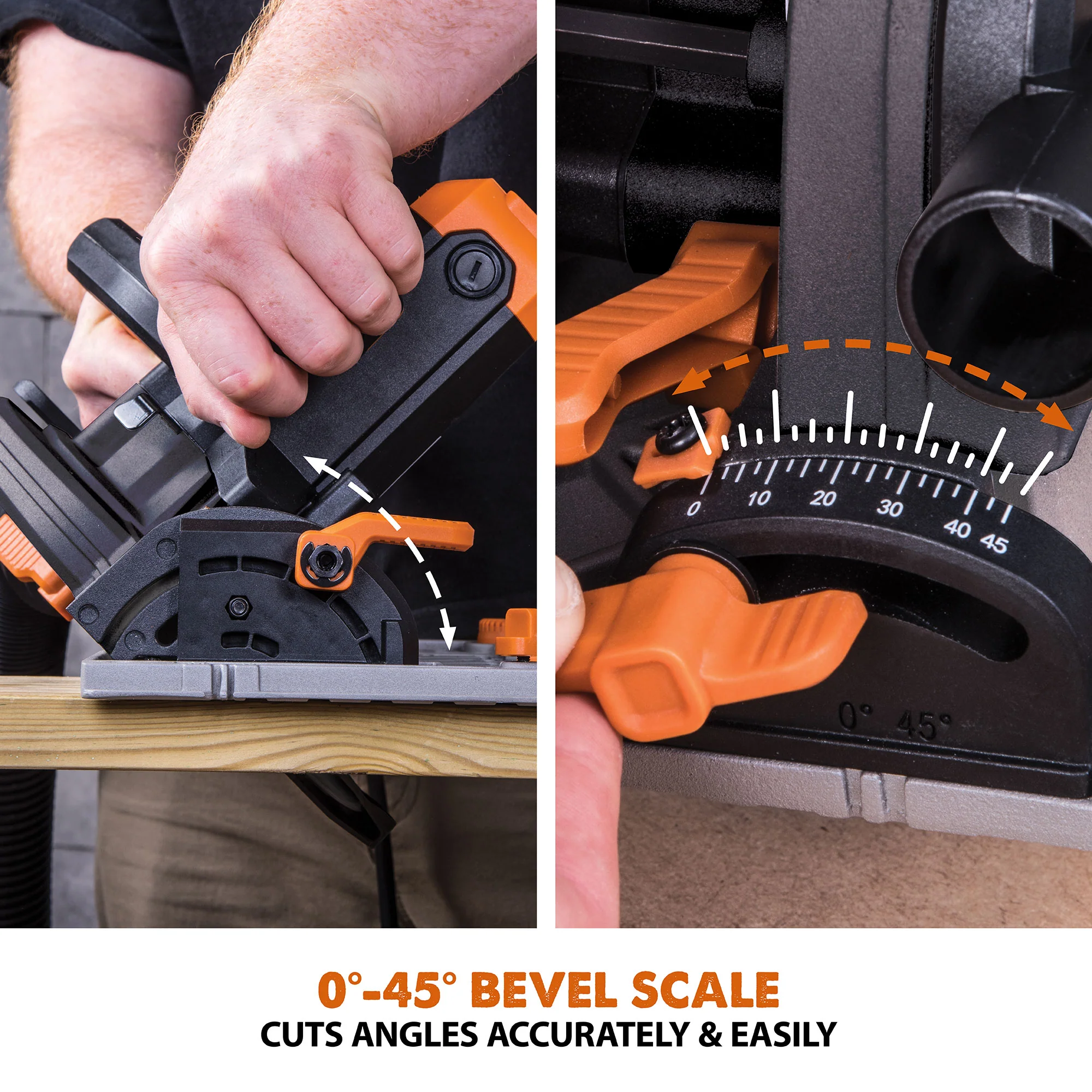

• 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
• Ergonomic, soft-grip handles provide maximum control, versatility, and precision.
• Dust extraction port & adaptor included for vacuum compatibility.

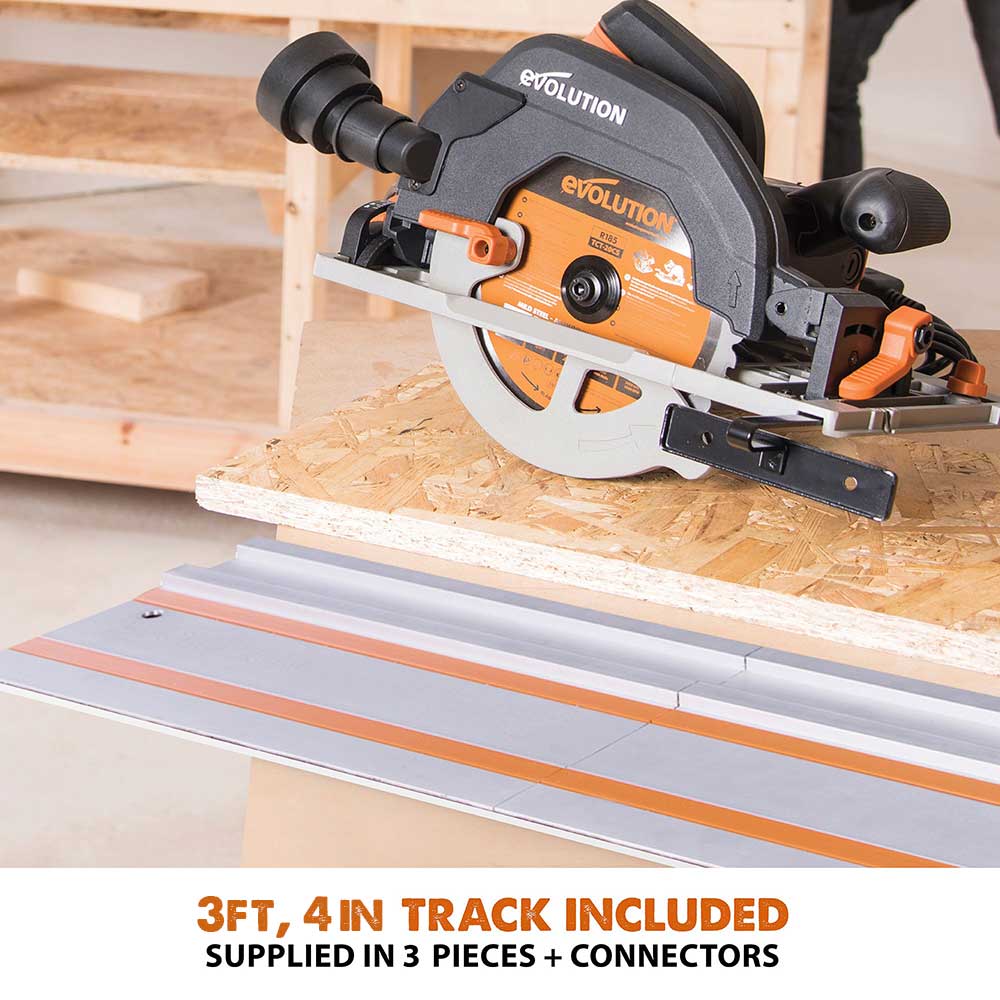

• 3 foot 4-inch Circular Saw Track included. Supplied in 3x pieces with connectors.

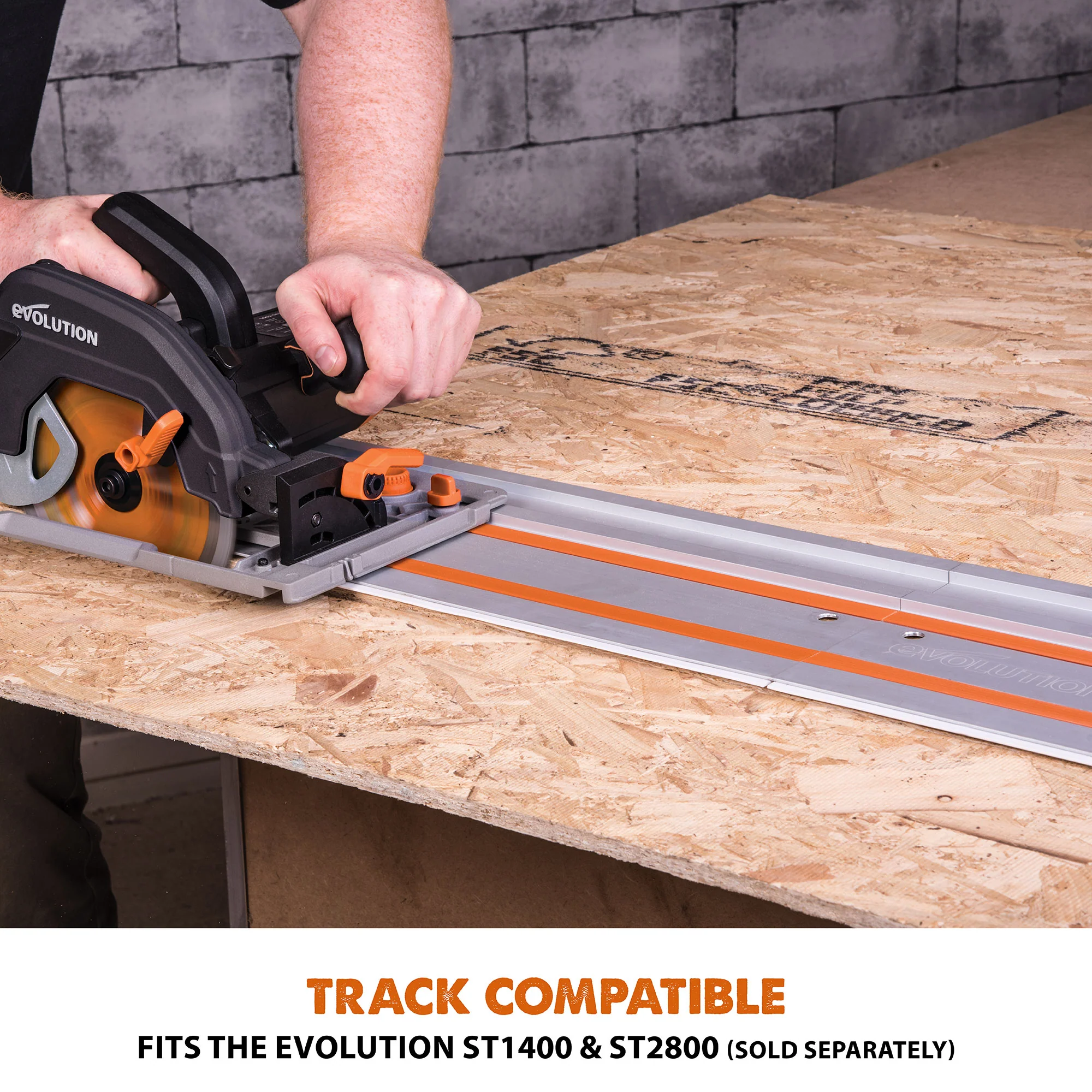

• Compatible With Evolution's 4 ft 7 in track (Sold Separately)

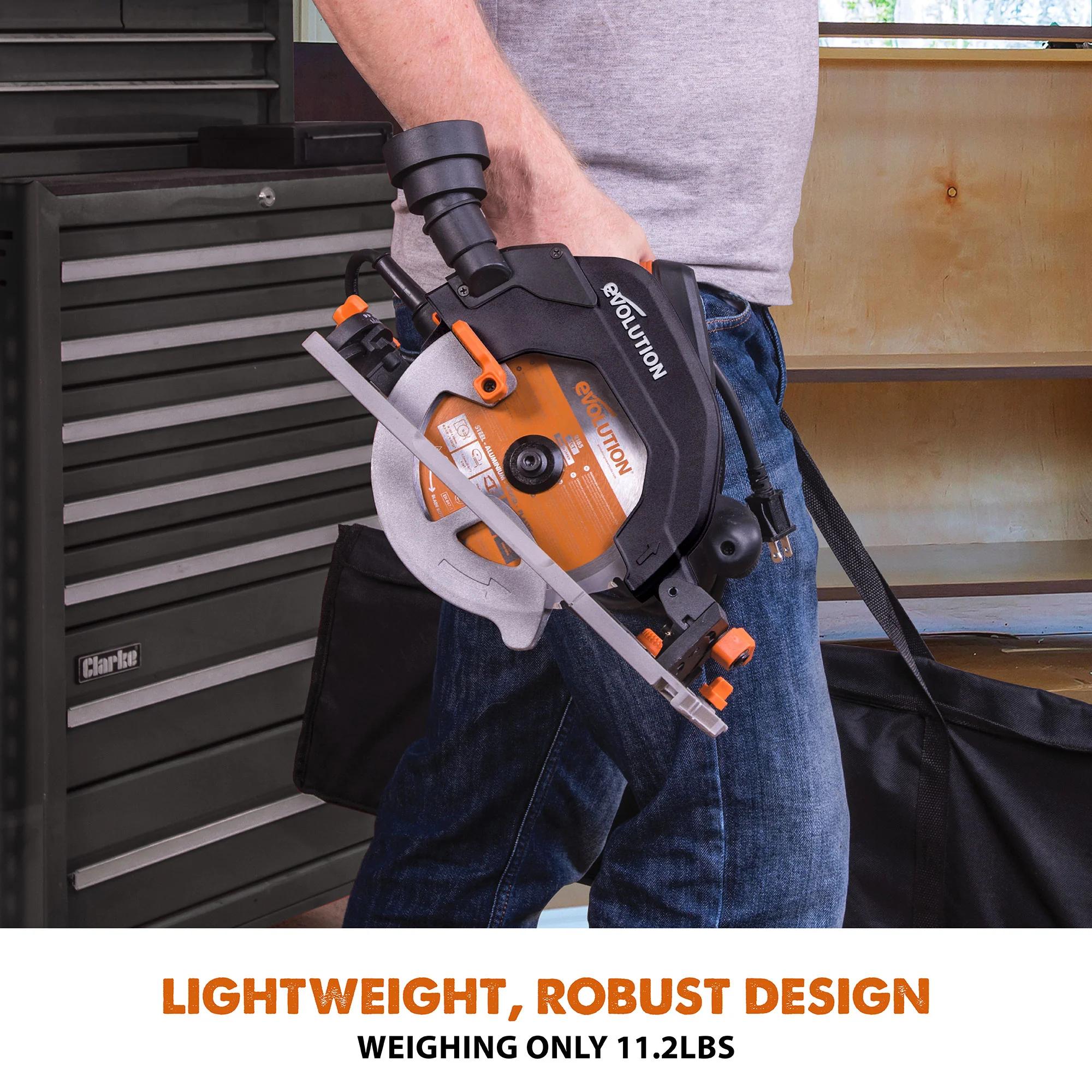

• Robust & sturdy construction with even weight distribution, weighing only 11.2 lbs

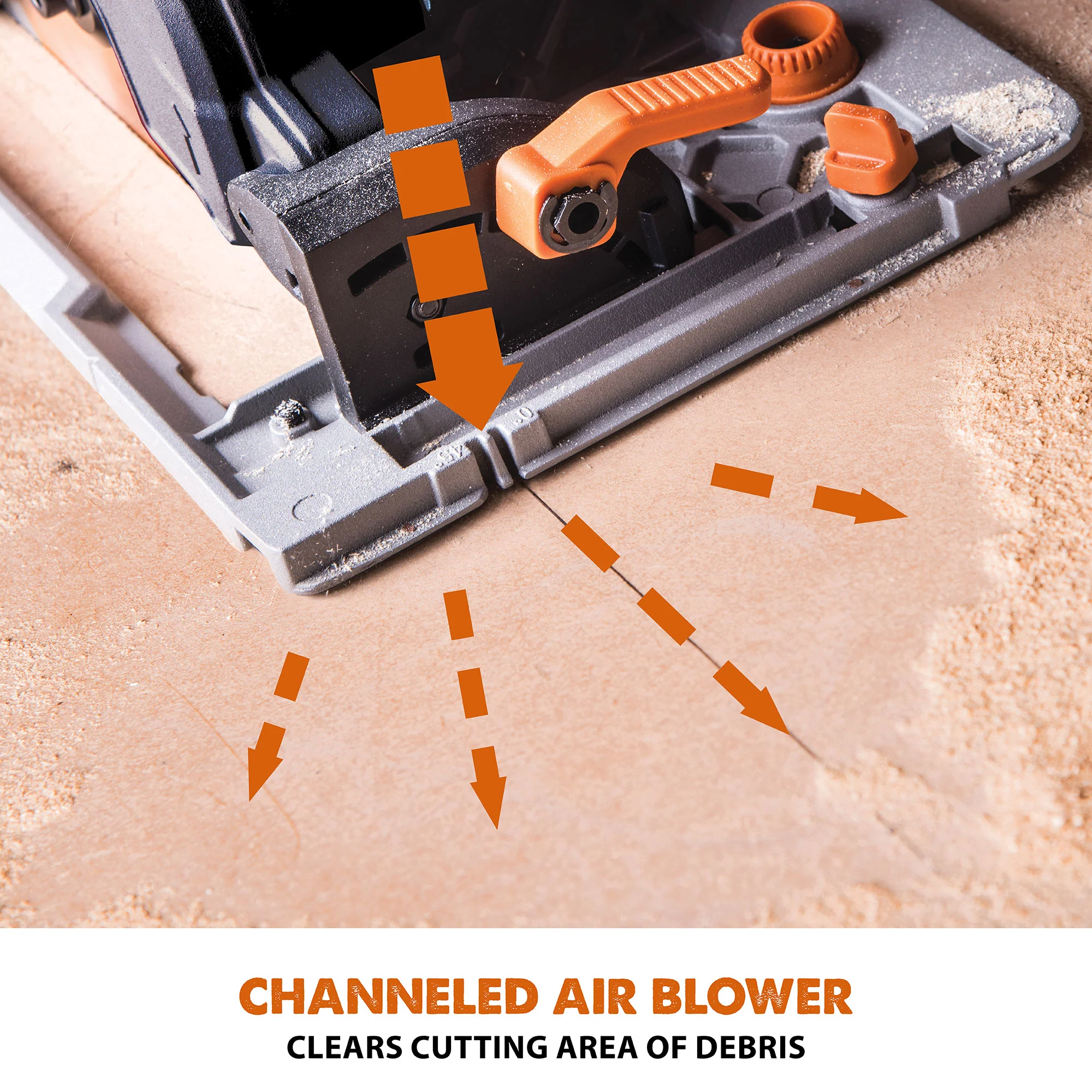

• Channeled airflow & base indicators ensure optimum visibility of your cutting line.
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.
• 3 Year limited warranty.

Cutting Capacities

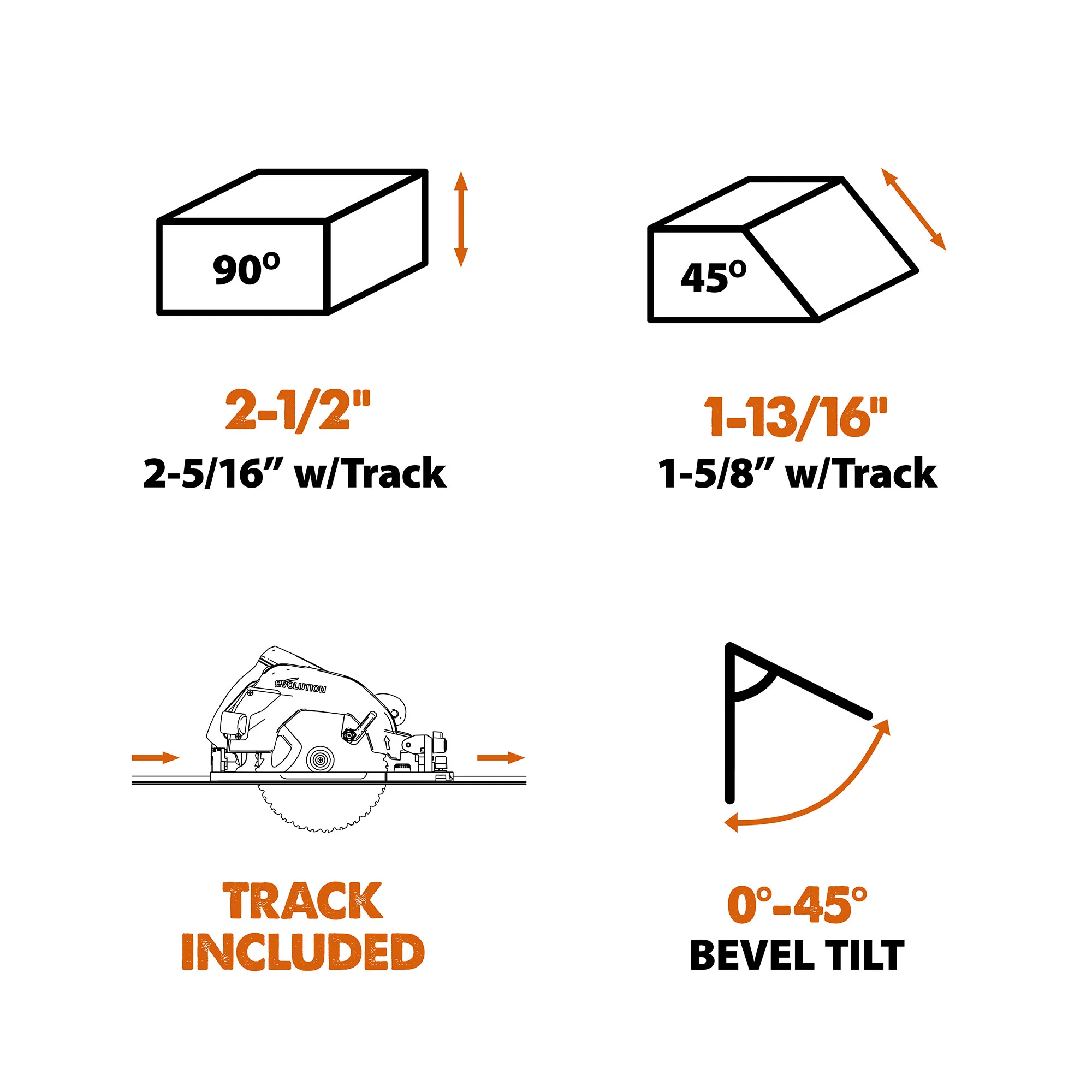

Max. Depth of Cut (0°):	2-1/2" (2-5/16" with track fitted)
Max. Depth of Cut (45°):	1-13/16" (1-5/8" with track fitted)
Mild Steel Plate (Max. Thickness):	1/4"
Mild Steel Box Section (Max. Wall Thickness):	1/4"

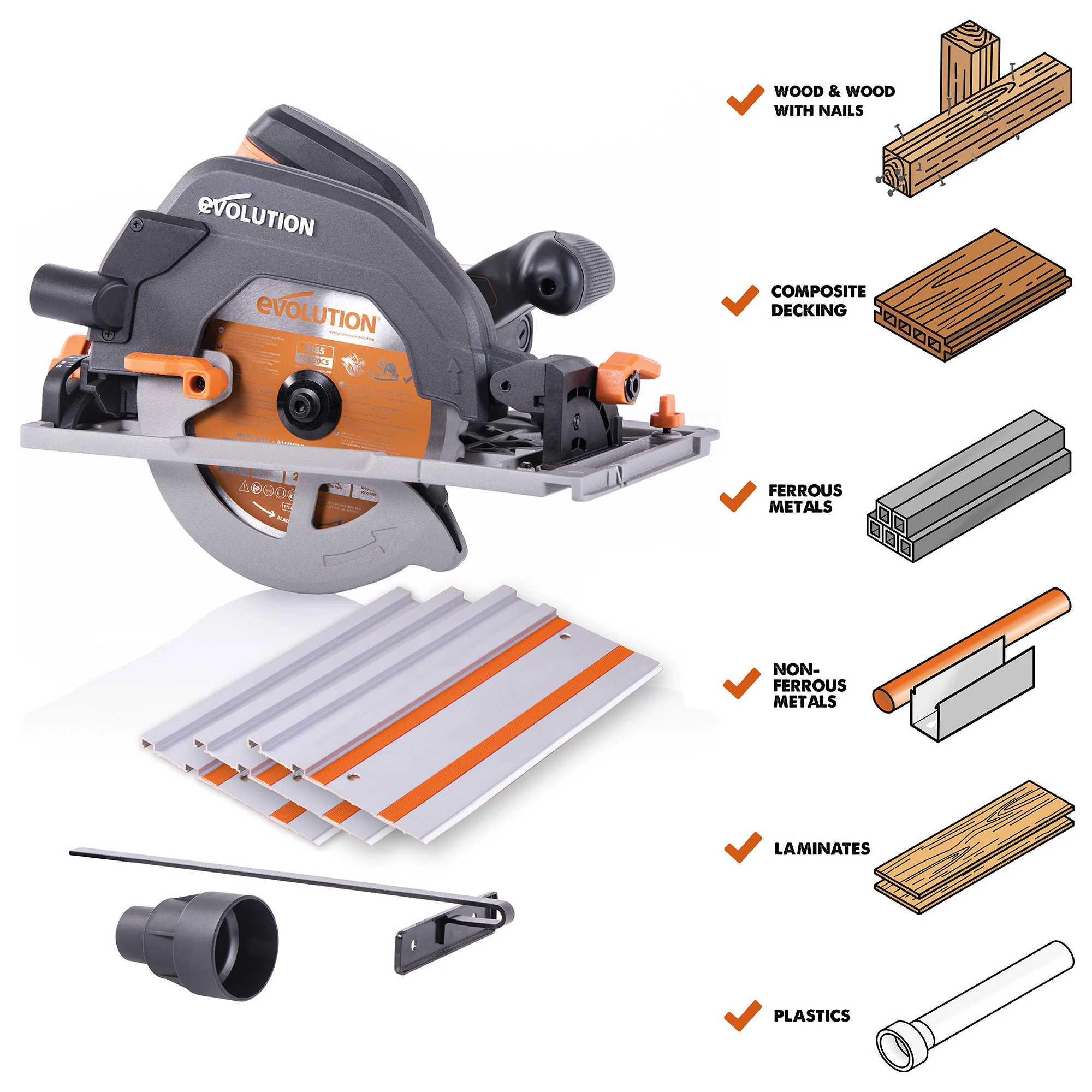

Cutting Applications

Wood	Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work.

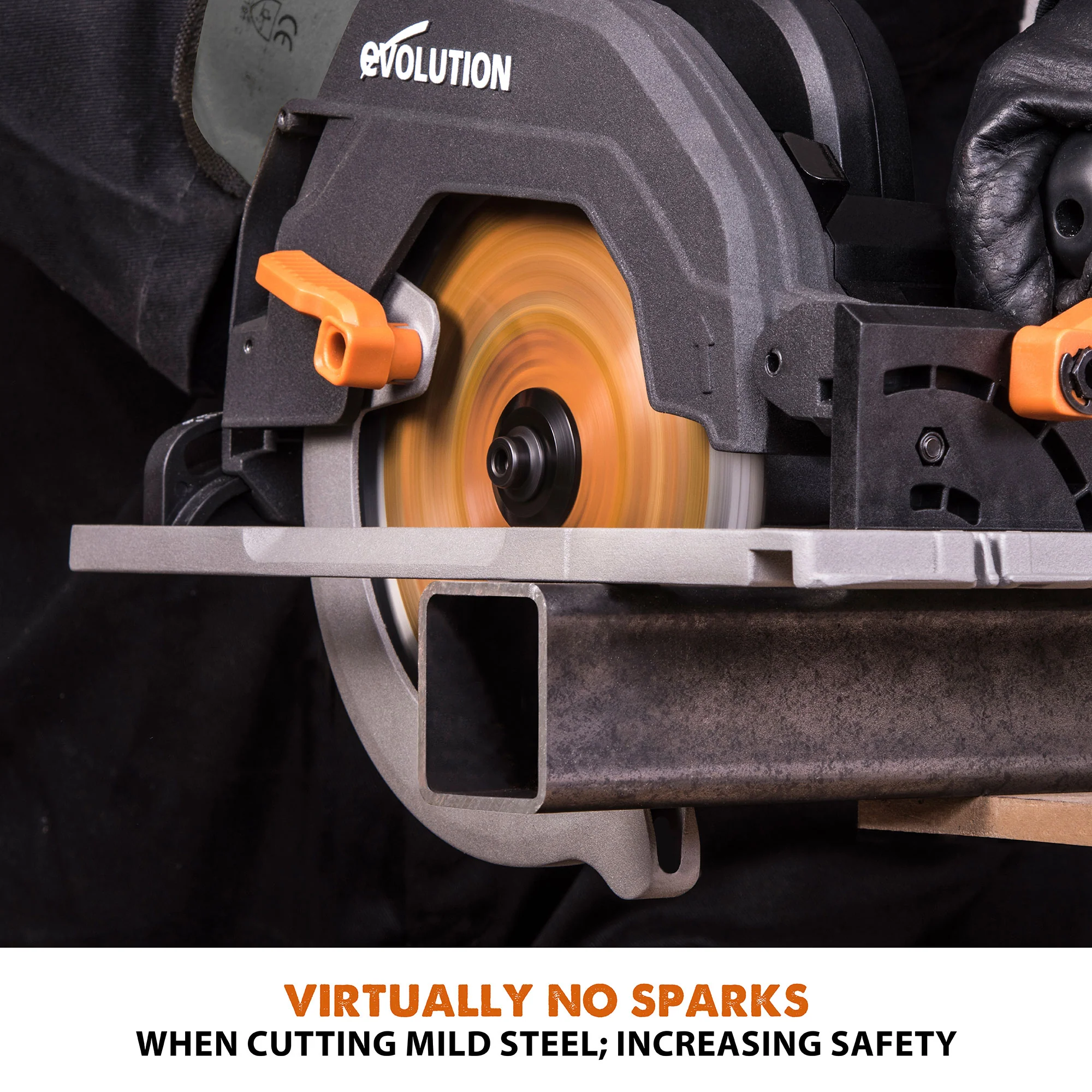

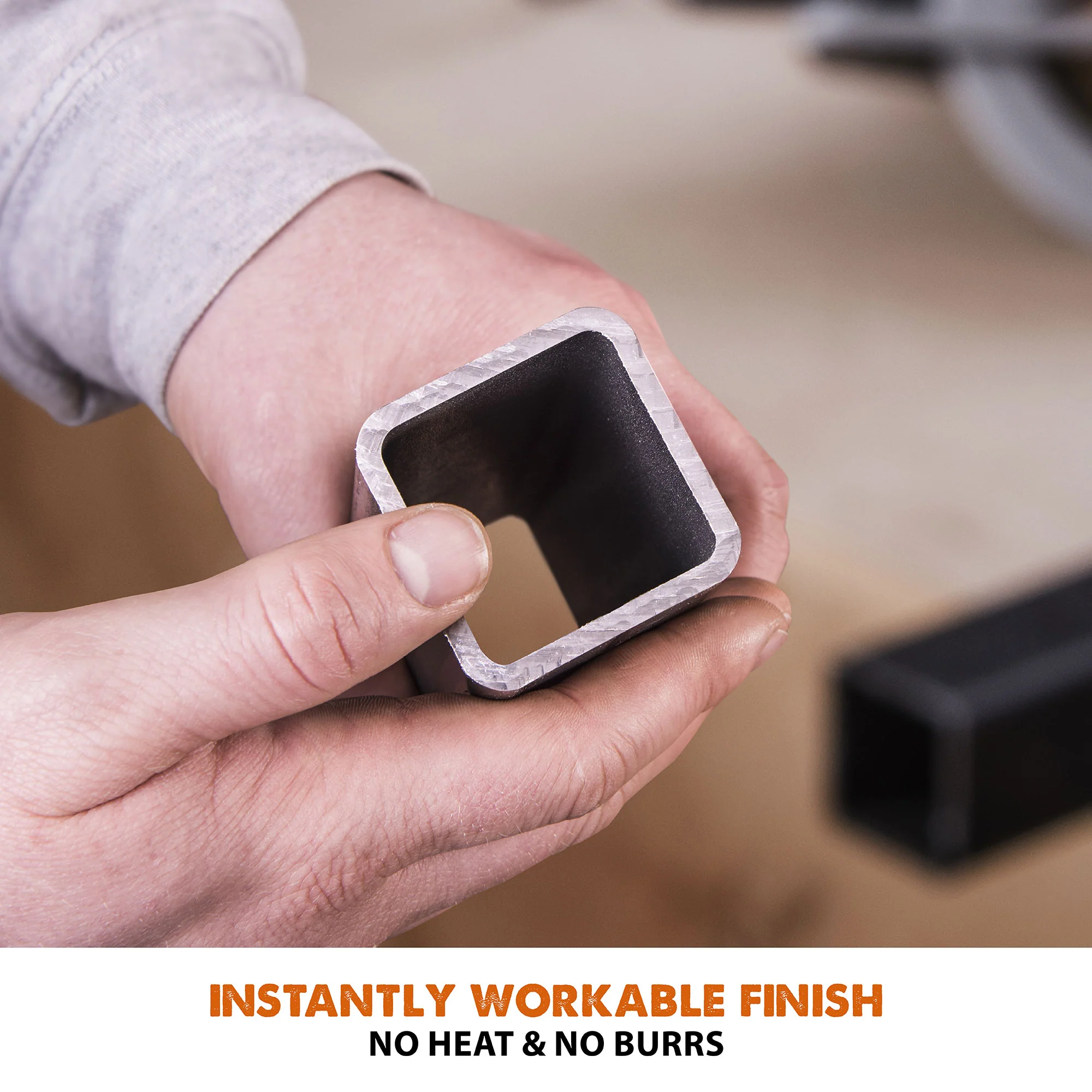

Ferrous Metal	Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut.
Non-Ferrous Metal	Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
Plastic	Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
Not Recommended	Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life.

Specifications

Machine

Motor (120V 60Hz):	15 A
Speed No Load:	3700 rpm
Max. Bevel (Left):	45°
Circular Saw Base:	Cast Aluminum

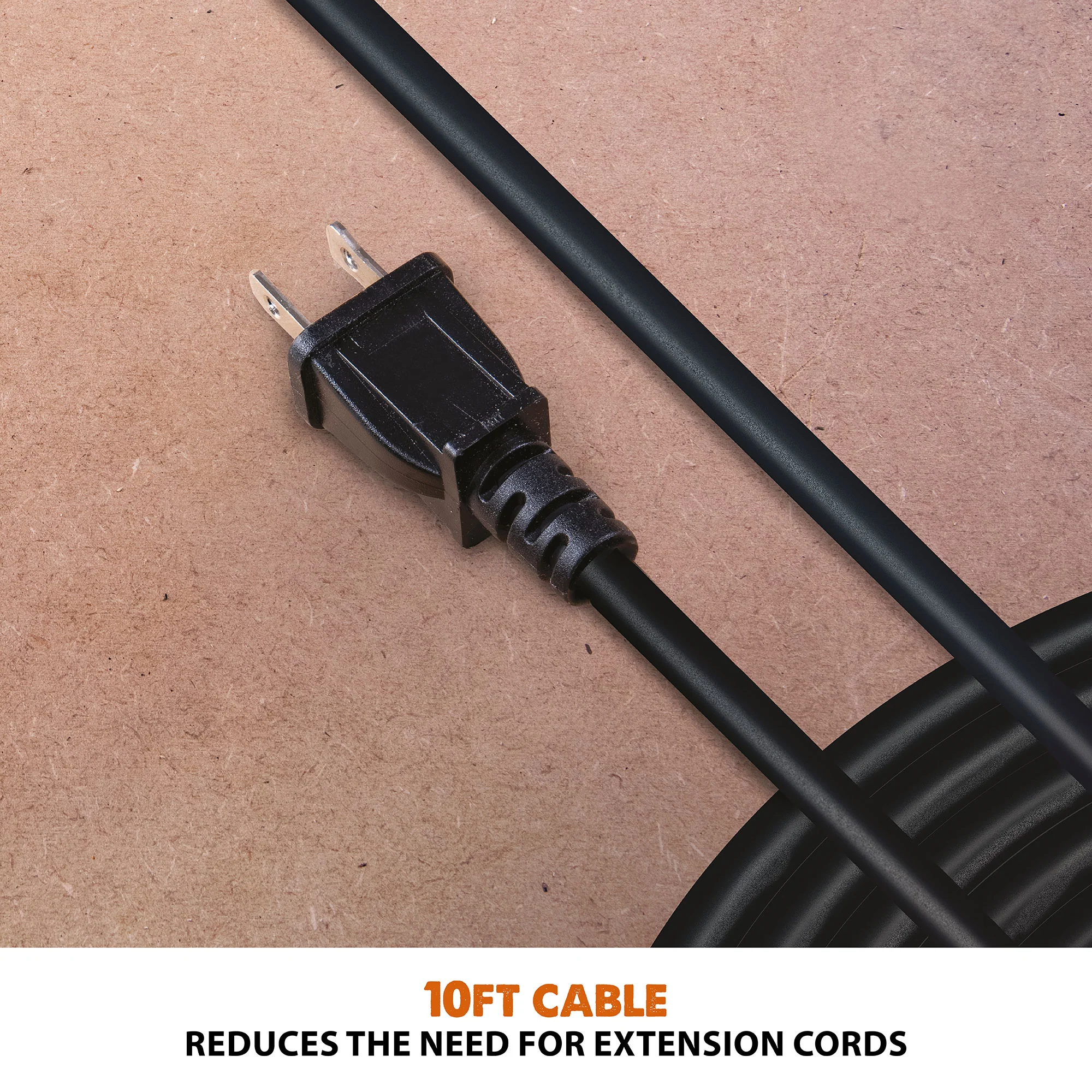

Cable Length:	10ft



Blade

Blade Dia.:	7-1/4"
No. of Teeth:	16 & 20
Arbor:	25/32"
Kerf:	0.066 in



Dimensions & Weights

Packaging Dimensions:	15 x 11-3/4 x 11 In.
Product Weight:	11.2 lbs
Packaged Weight:	18.3 lbs



Items Included

16T Multi-Material TCT Blade

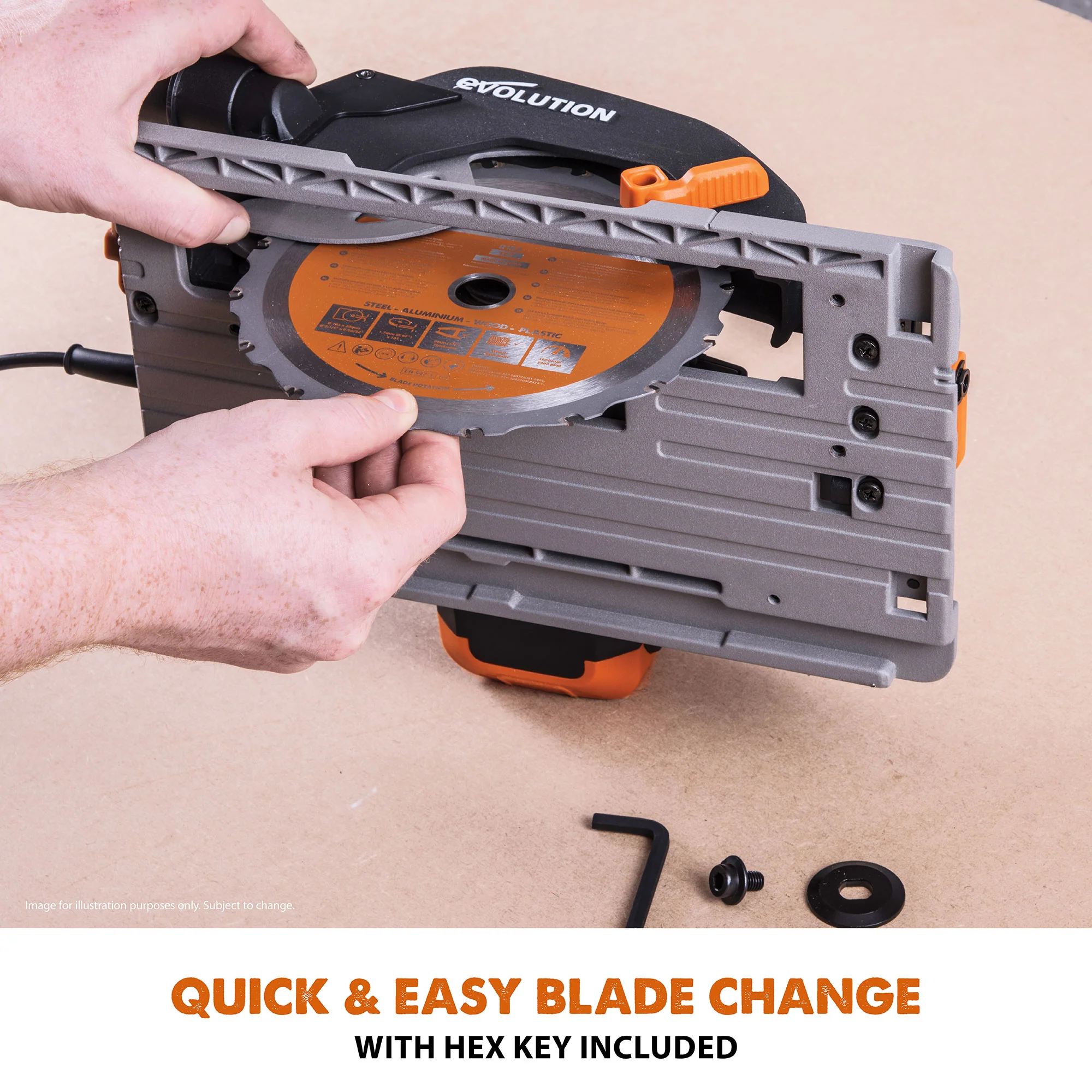

Hex Key (Blade Change)

Parallel Edge Guide

Dust Port Adapter

Dust Hose Connector

Cutting Track: 3' 4" track included (3 pieces)

Connector Bar & Screws (x4)
