Evolution S355MCS: Metal Cutting Mitering Chop Saw With 14 in. Mild Steel Blade | Heavy Duty
Built for professionals, the S355MCS Mitering Chop Saw from Evolution is the first 14” TCT industrial Chop Saw that allows you to produce accurate miter cuts without having to reposition the workpiece.

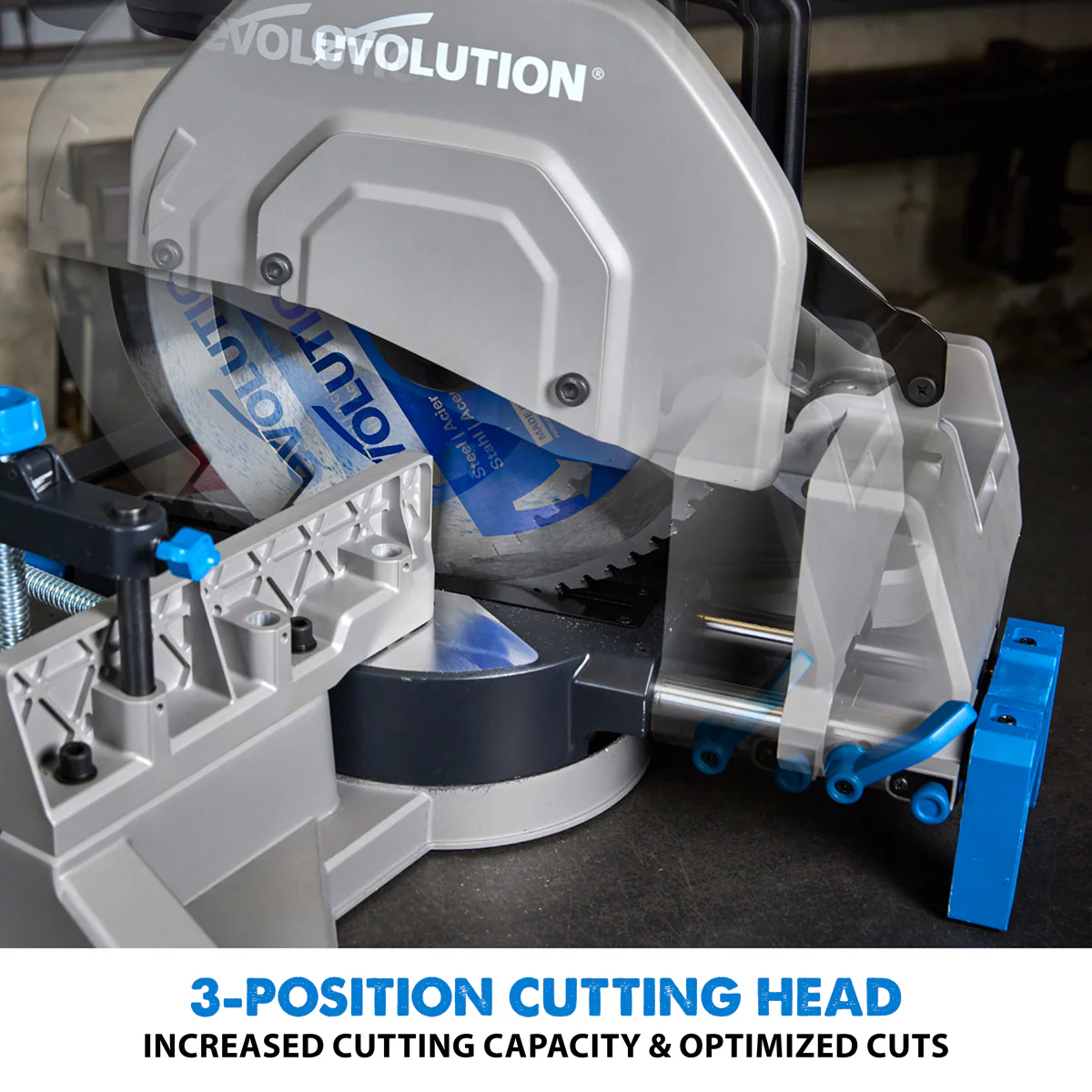

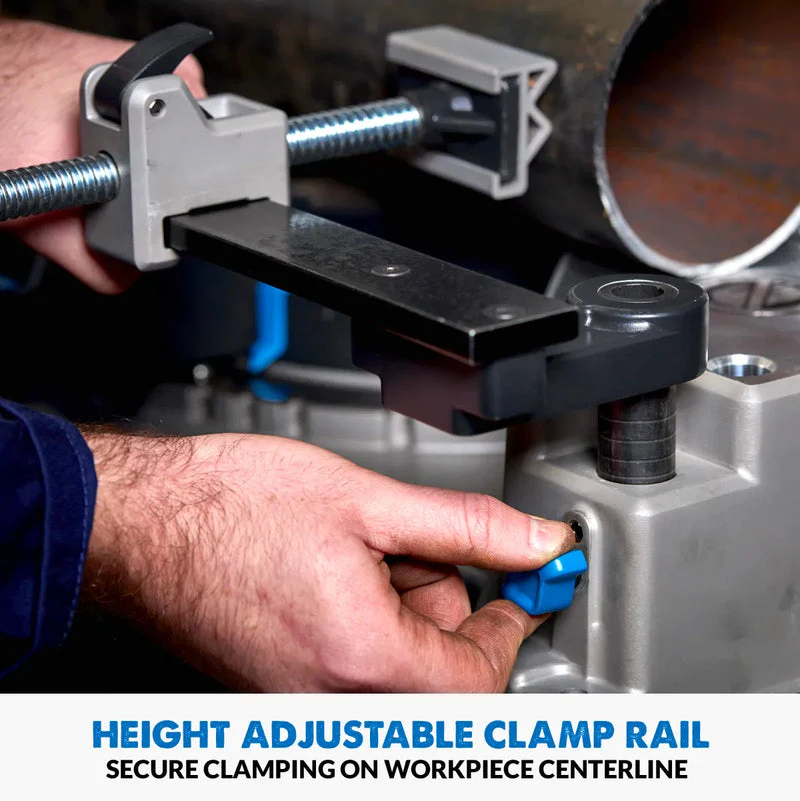

- Designed to tackle heavy cuts in oversized metal pieces the S355MCS Mitering Chop Saw features a precision adjustable miter table, 3-position saw head, and our unique, height adjustable front clamp rail assembly.

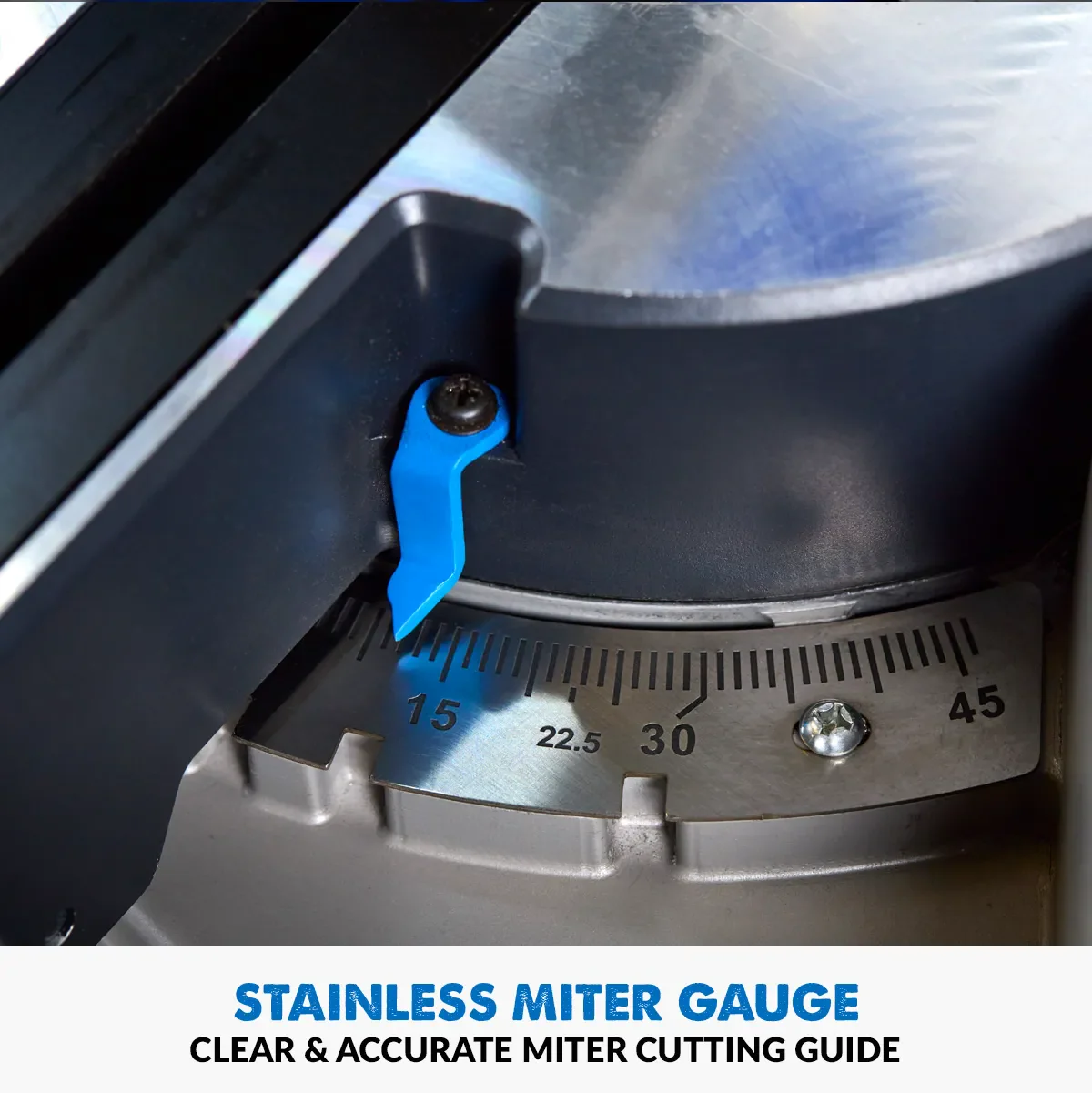

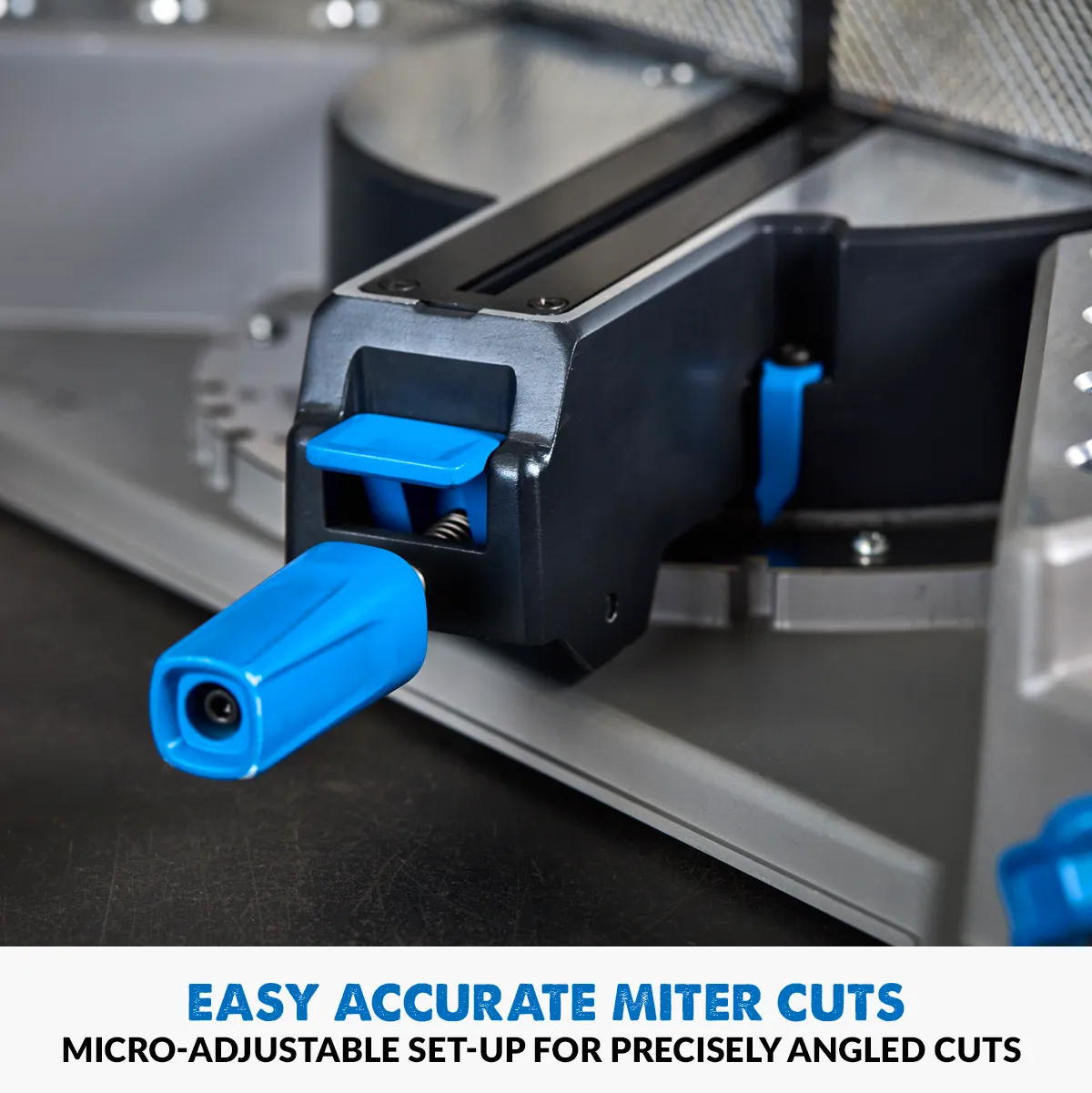

- It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time.
- Powerful 15A motor.

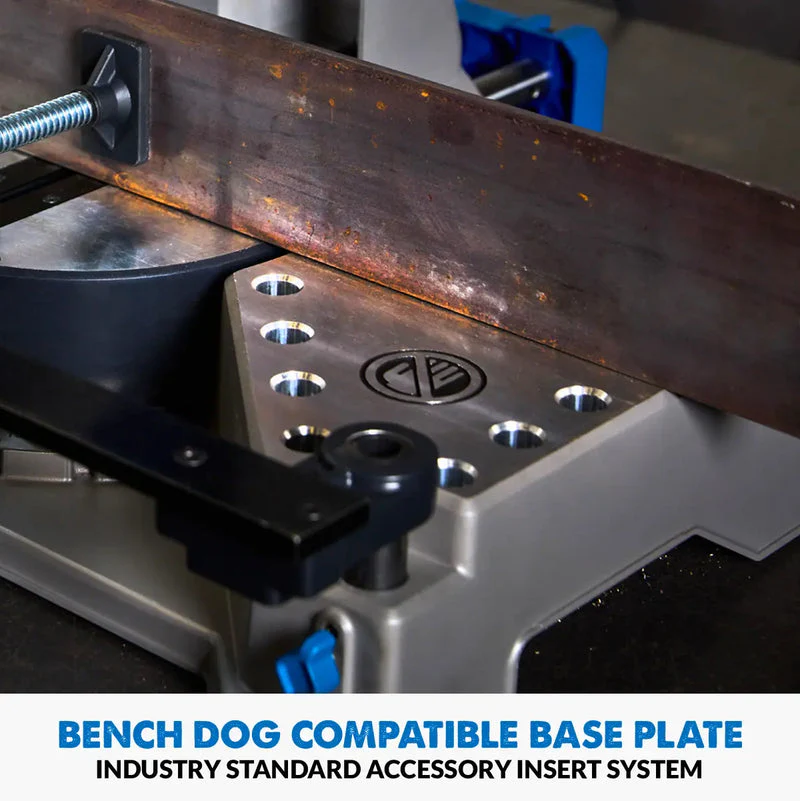

- Easy ambidextrous controls and a Bench Dog compatible base plate with a tough knurled back fence.
- The S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs.
Cutting Capacities
| Mild Steel Plate (Max Thickness): | 1/2 In. |
| Stainless Steel Plate (Max Thickness): | 13/64 In. |
| Square Tube at 90° (Mild Steel): | 4-3/4 x 4-3/4 In. |
| Square Tube at 45° ML: | 4 x 4 In. |
| Square Tube at 45° MR: | 1-3/4 x 1-3/4 In. |
| Rectangle Tube at 90° | 6-1/2 x 4 In. |
| Rectangle Tube at 45° | 4-1/2 x 1-3/4 In. |
| Round Tube at 90° | Ø 4-3/4 In. |
| Round Tube at 45° (Mild Steel): | Ø 4 In. |
| Minimum Cut Off Piece Length: | 5/16 In. |
Specifications
Machine
| Motor: | (120V 60Hz):15A |
| Speed No Load: | 1450 rpm |
|
Max. Miter (Left and Right): |
+/- 46° |
| Cable Length: | 10 ft |
Blade

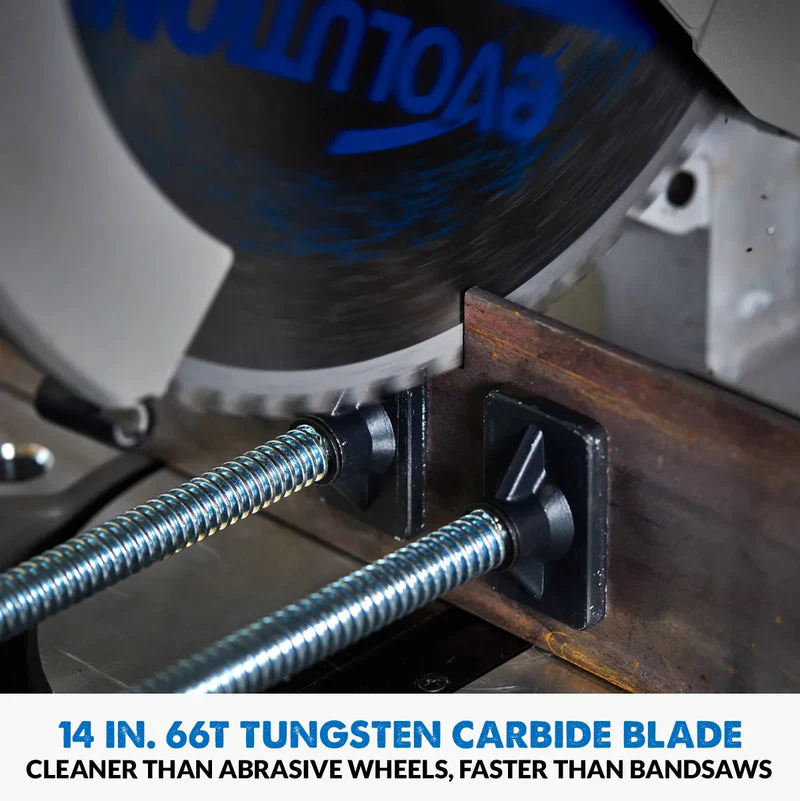

| Blade Dia.: | 14 In. |
| No. of Teeth: | 66 |
| Bore: | 1 In. |
| Kerf: | .094 In. |
Dimensions
| Packaging Dimensions: | 18 x 30 x 23 In. |
| Product Dimensions (assembled): | 28.25"L x 26"W x 27.5"H |
| Product Weight: | 77 lbs |
| Packaged Weight: | 88 lbs |
Items Included
| Instruction Manual |
| 66 Tooth Mild Steel TCT Blade |

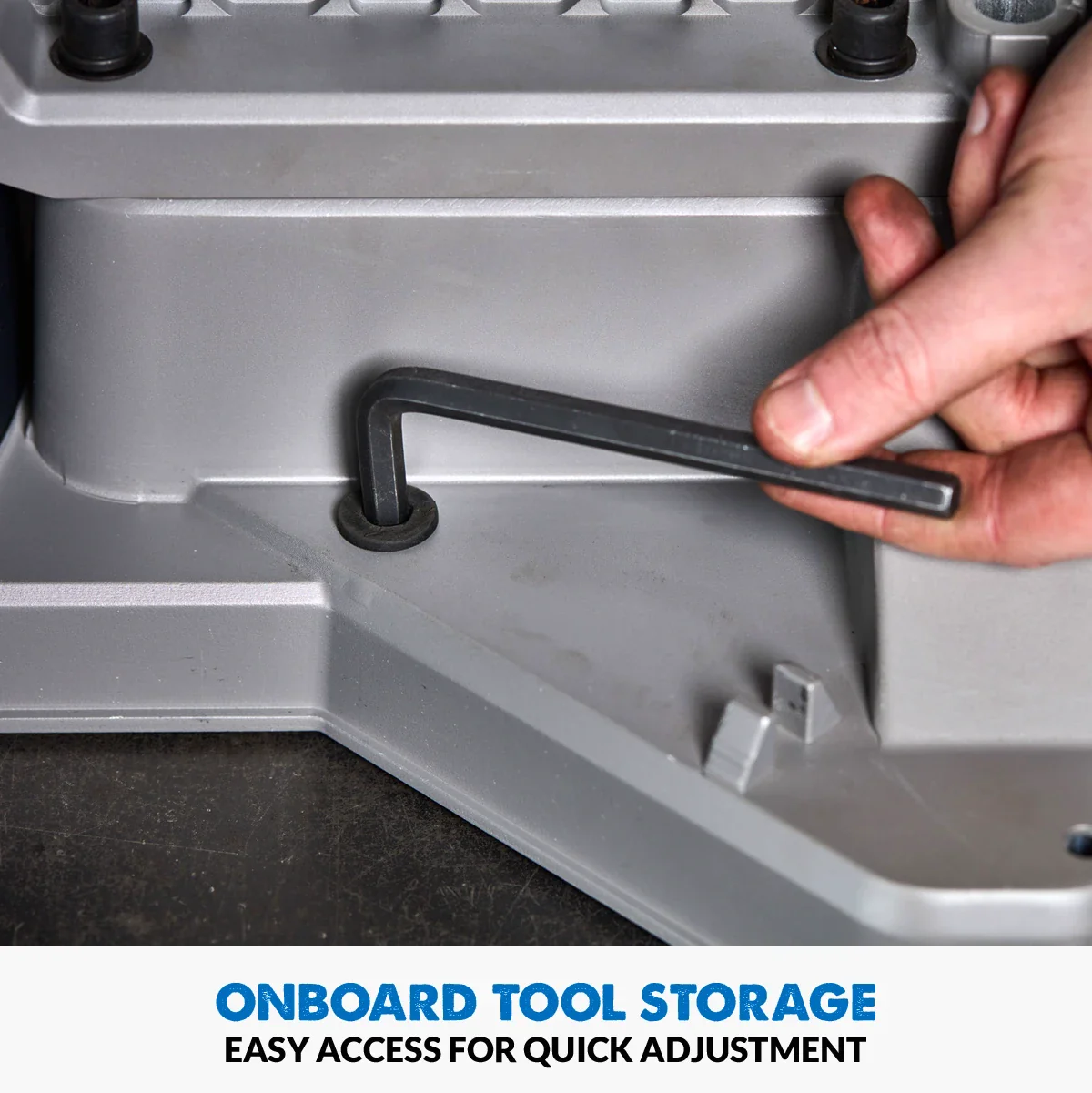

| Double Ended 5mm/8mm Hex Key |
| Cutting Head Assembly |
| Base Table Assembly |
| Rear Stabilizing Leg |

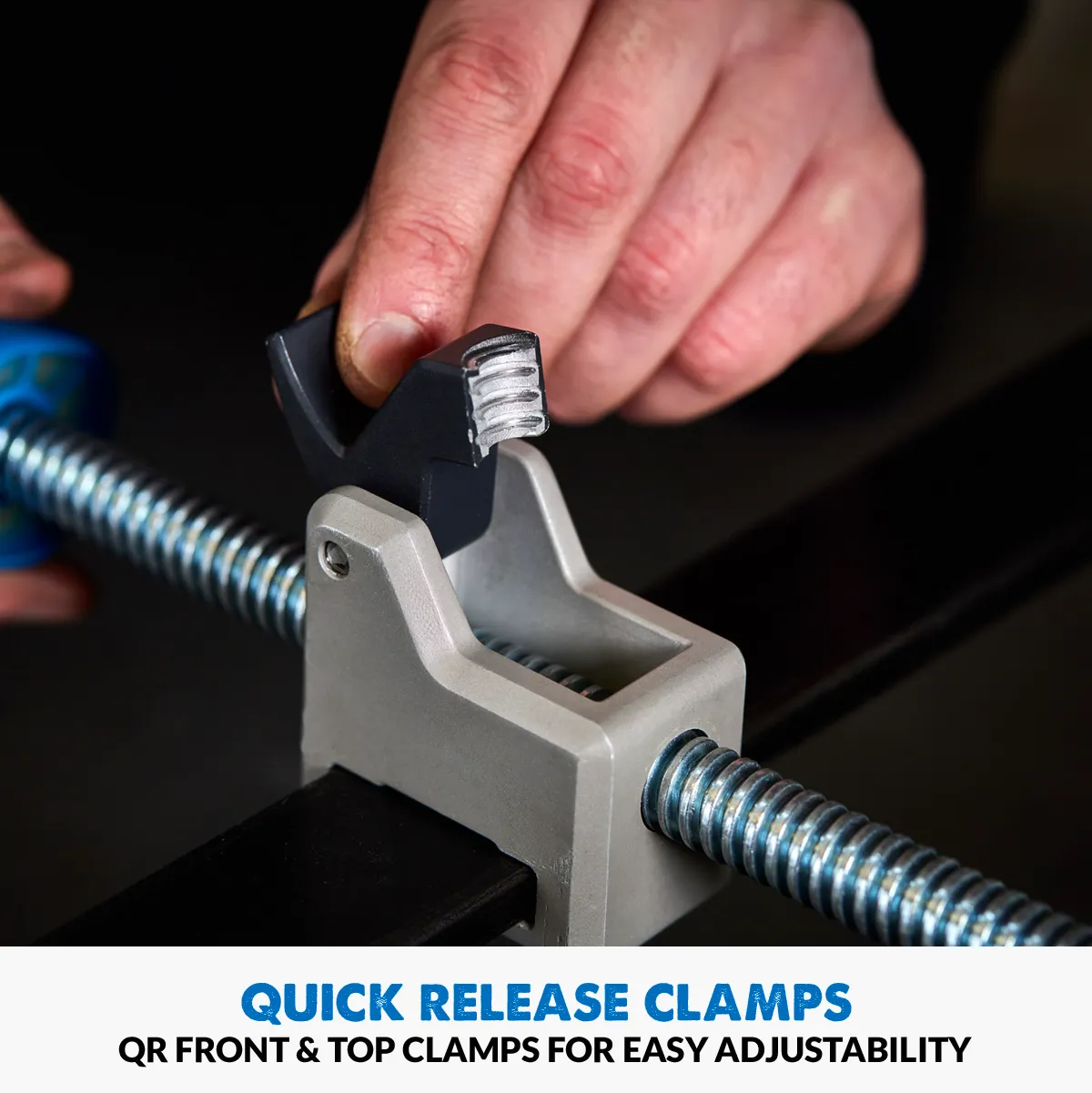

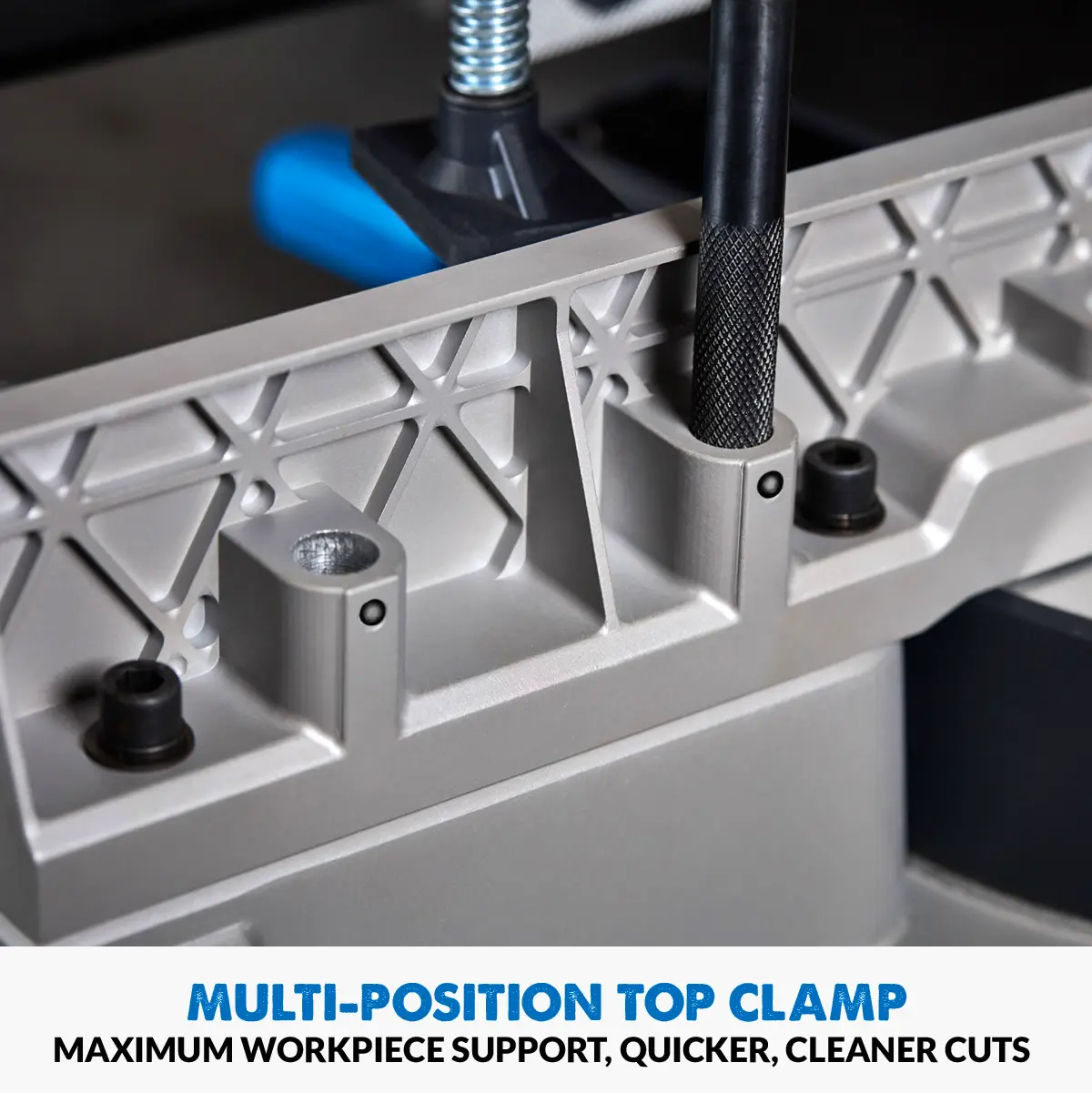

| Quick Release Top Clamp |
| Rail Bracket & Fixings |

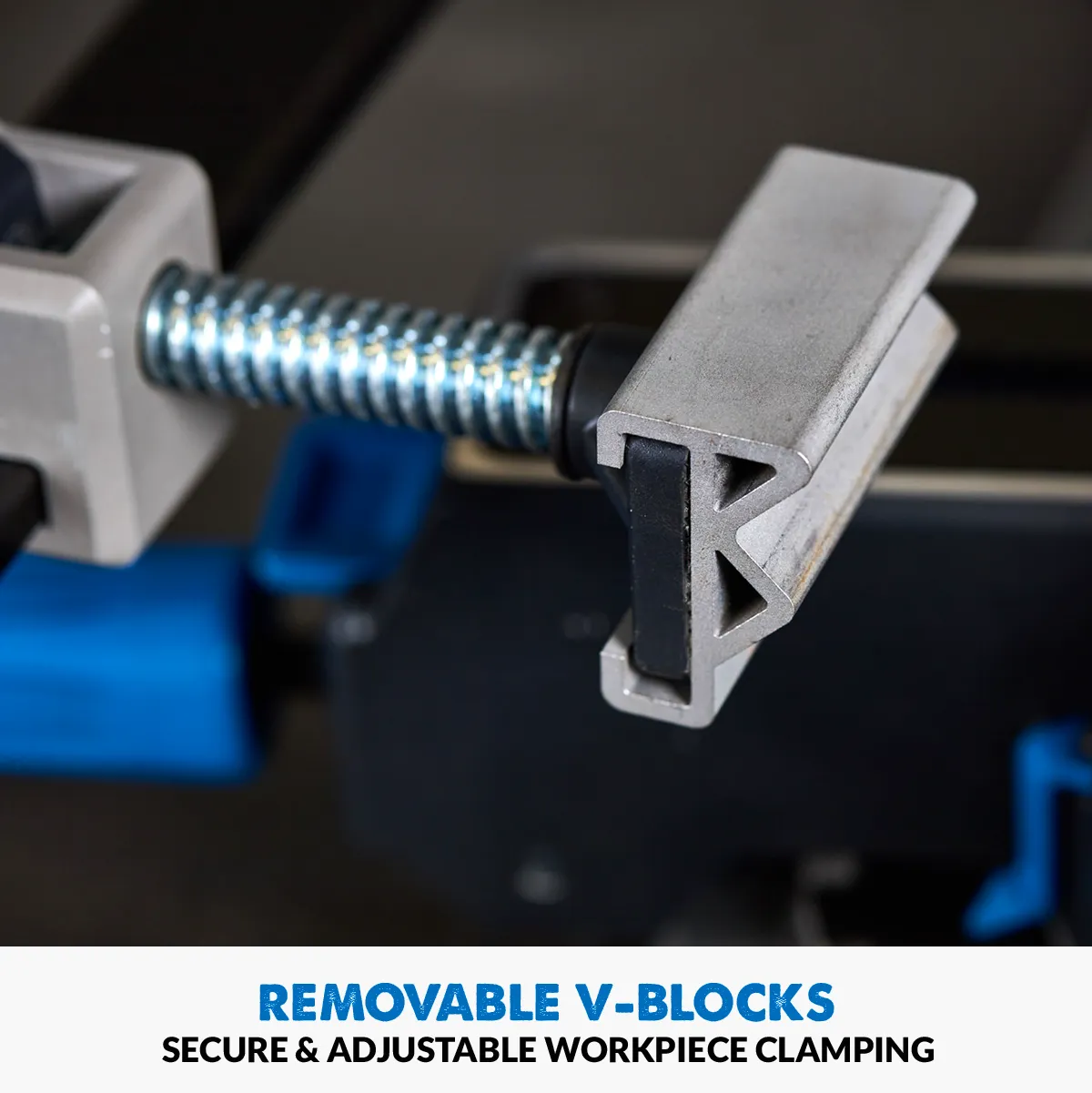

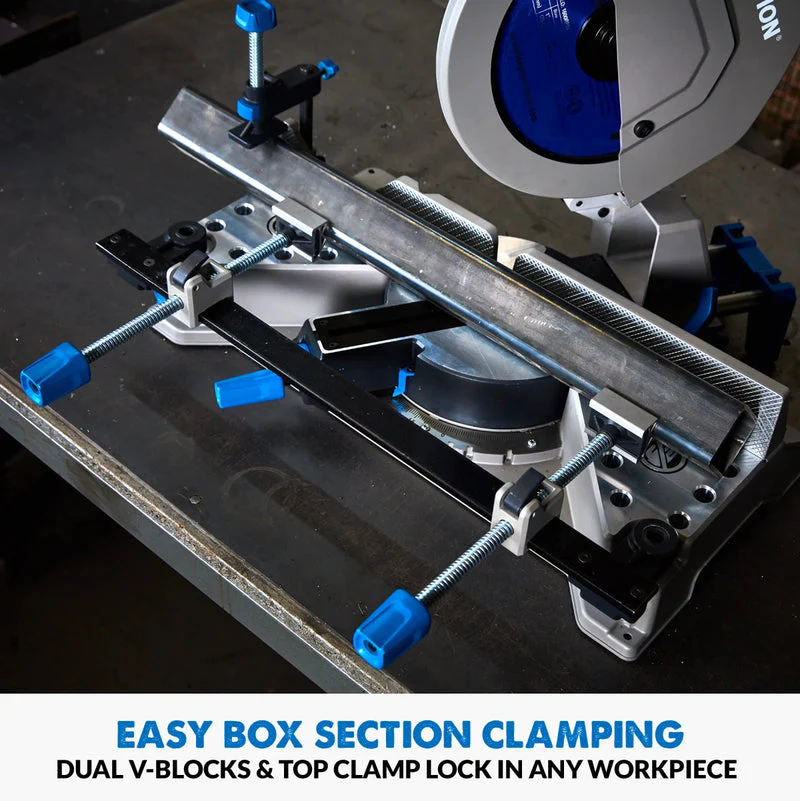

| V-Blocks x3 |

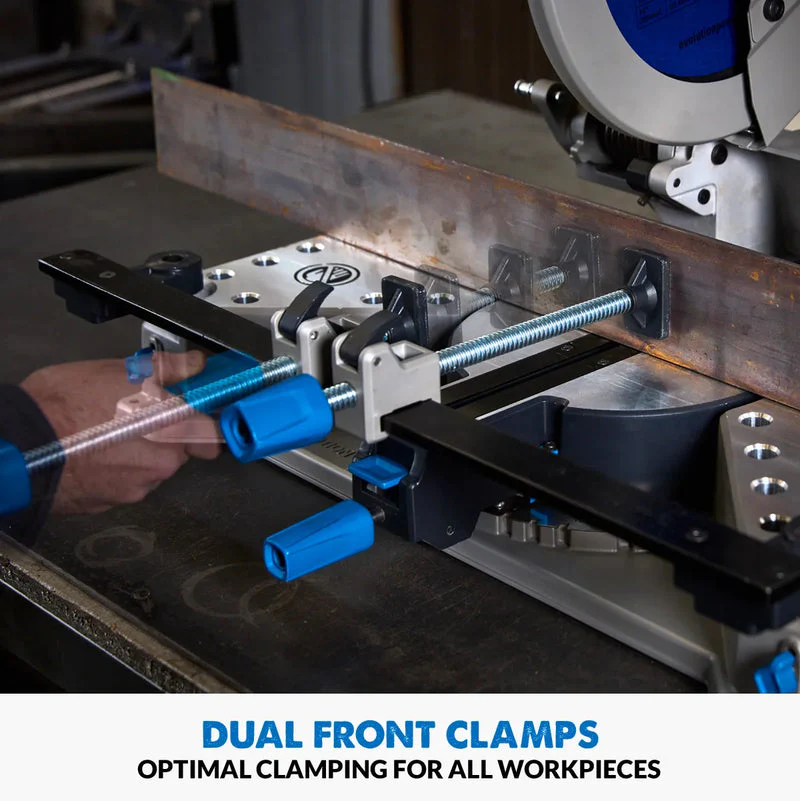

| Quick Release Front Clamps x 2 |
