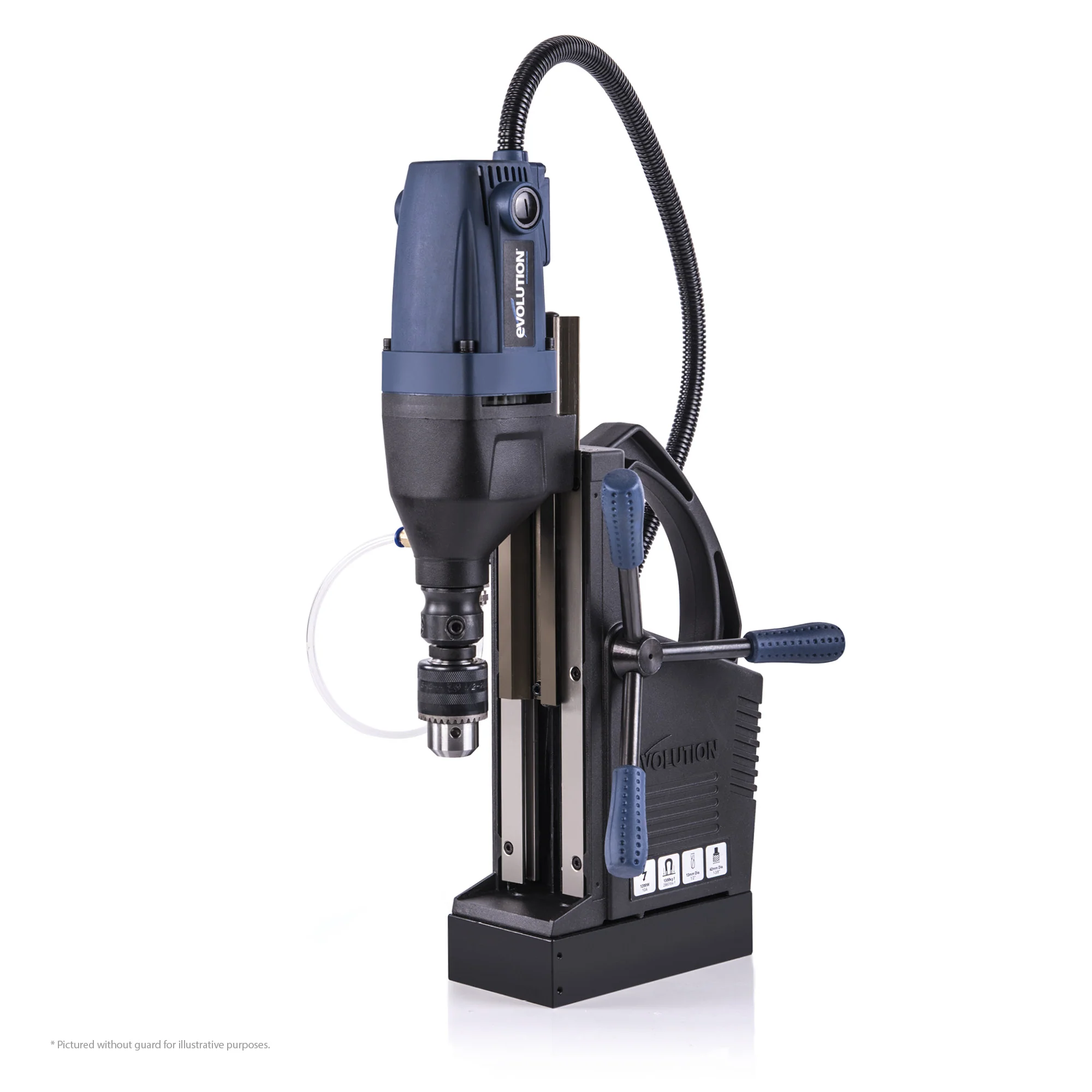

S28MAG 1-1/8 In. Magnetic Drill with Carry Case

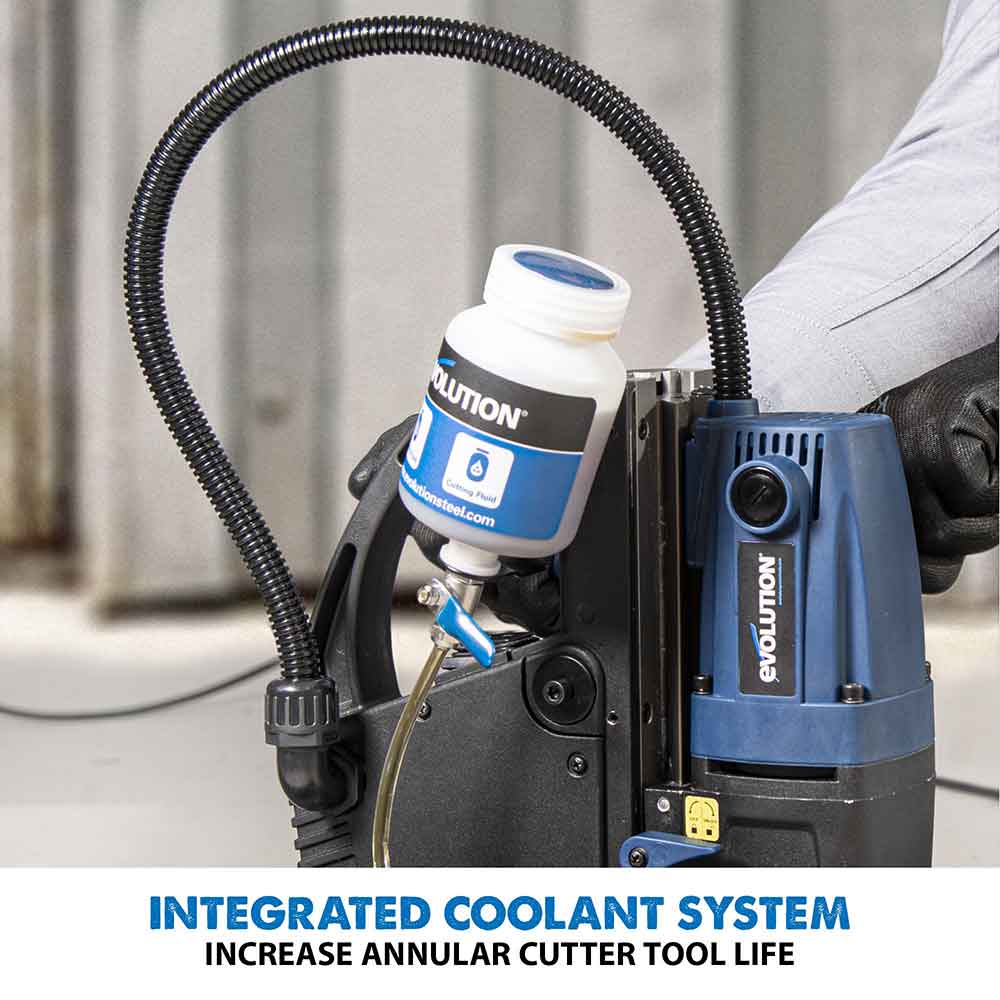

• Simple to use coolant system ensures that the workpiece stays cool while drilling.

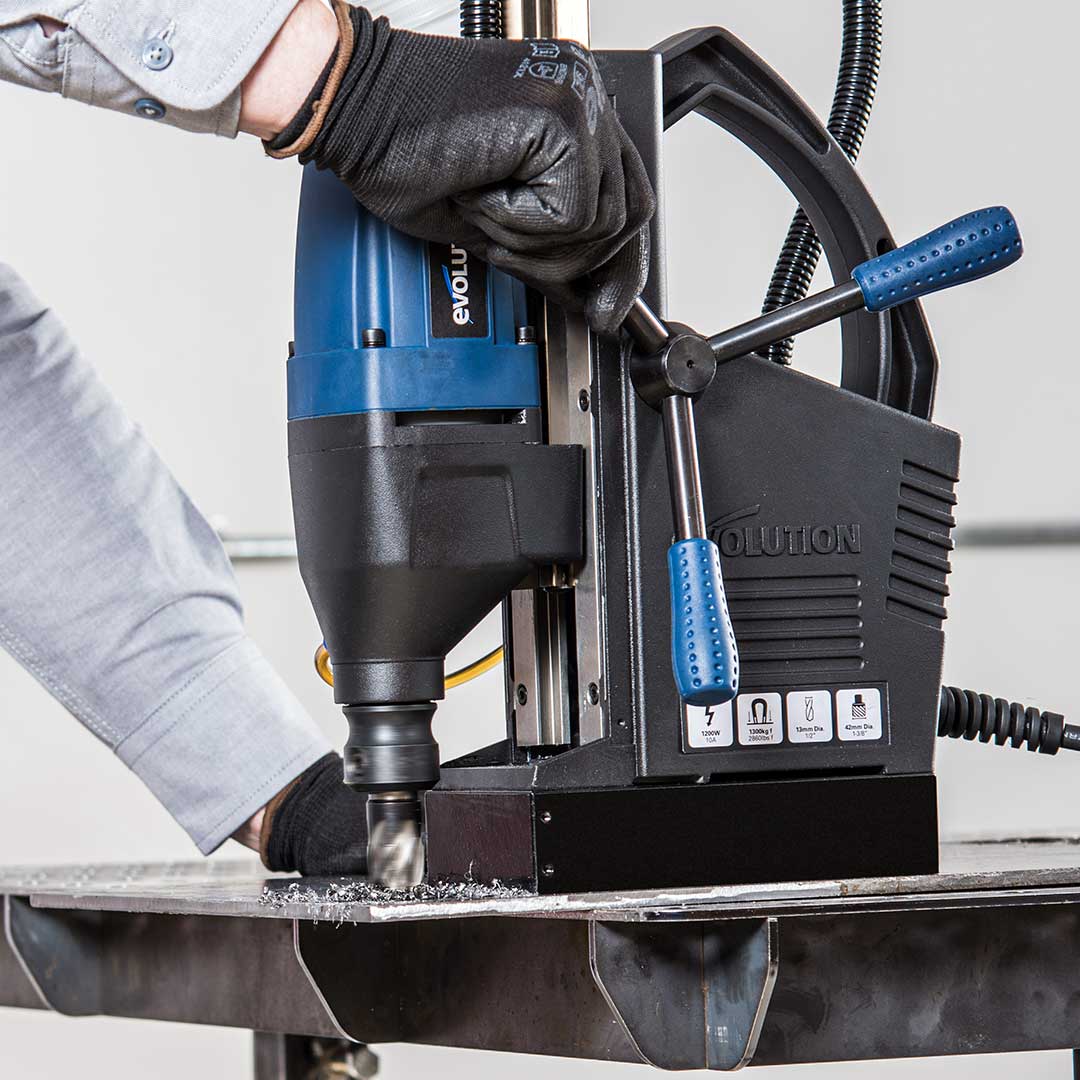

• Textured, Tri-spoke spindle handle gives you ultimate control when lowering the drill.
• Ultra-smooth dovetail slides offer smooth and precise operation.
• 2 stage magnet allows you to precisely configure the machine so you get a perfect result.

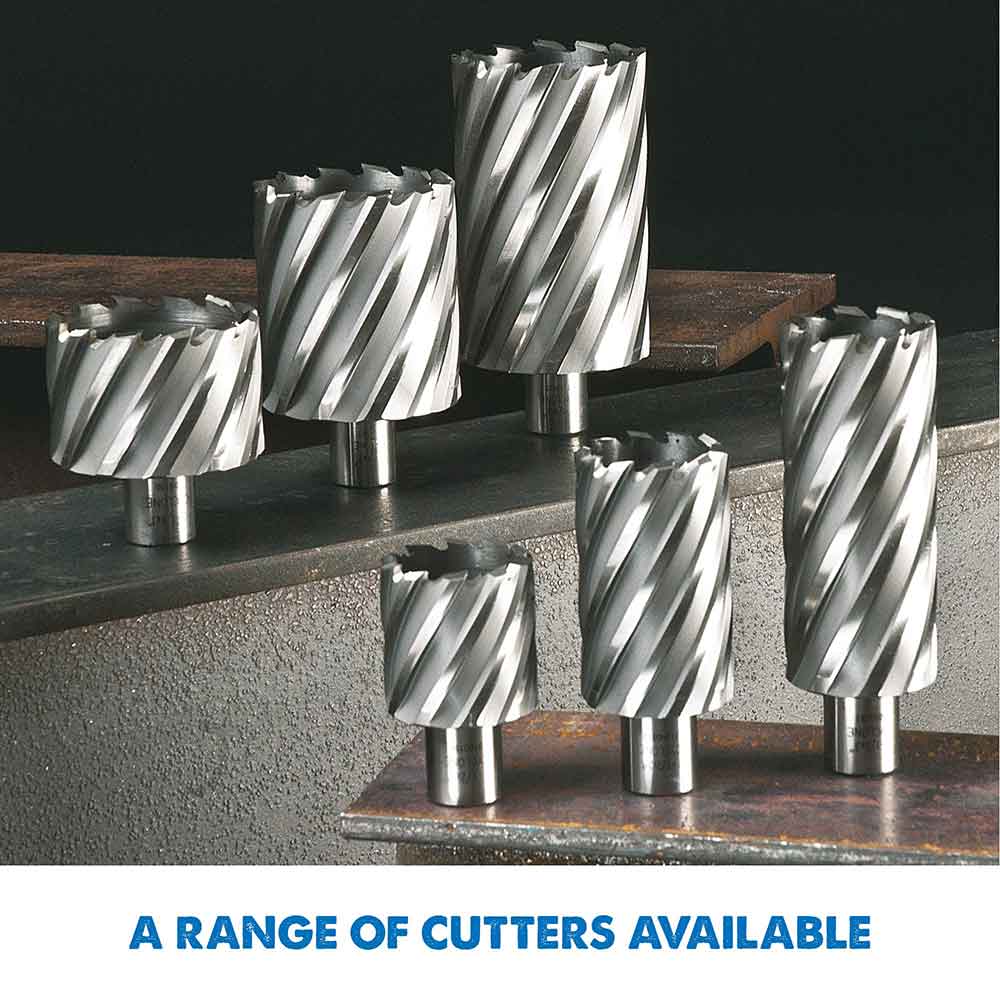

• Compatible with a range of Evolution premium annular cutters and accessories.
• Supplied in a robust carry case.

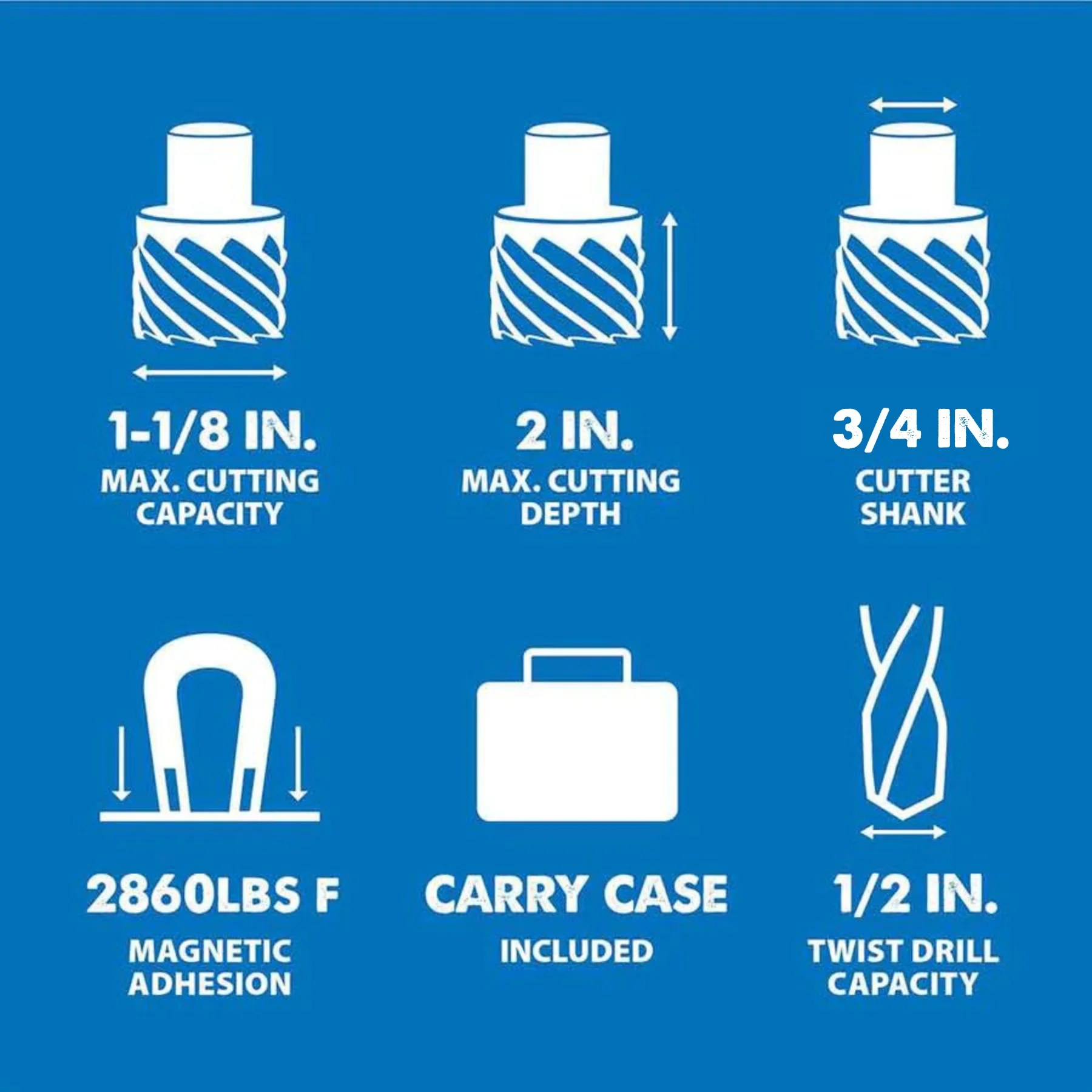

Cutting Capacities

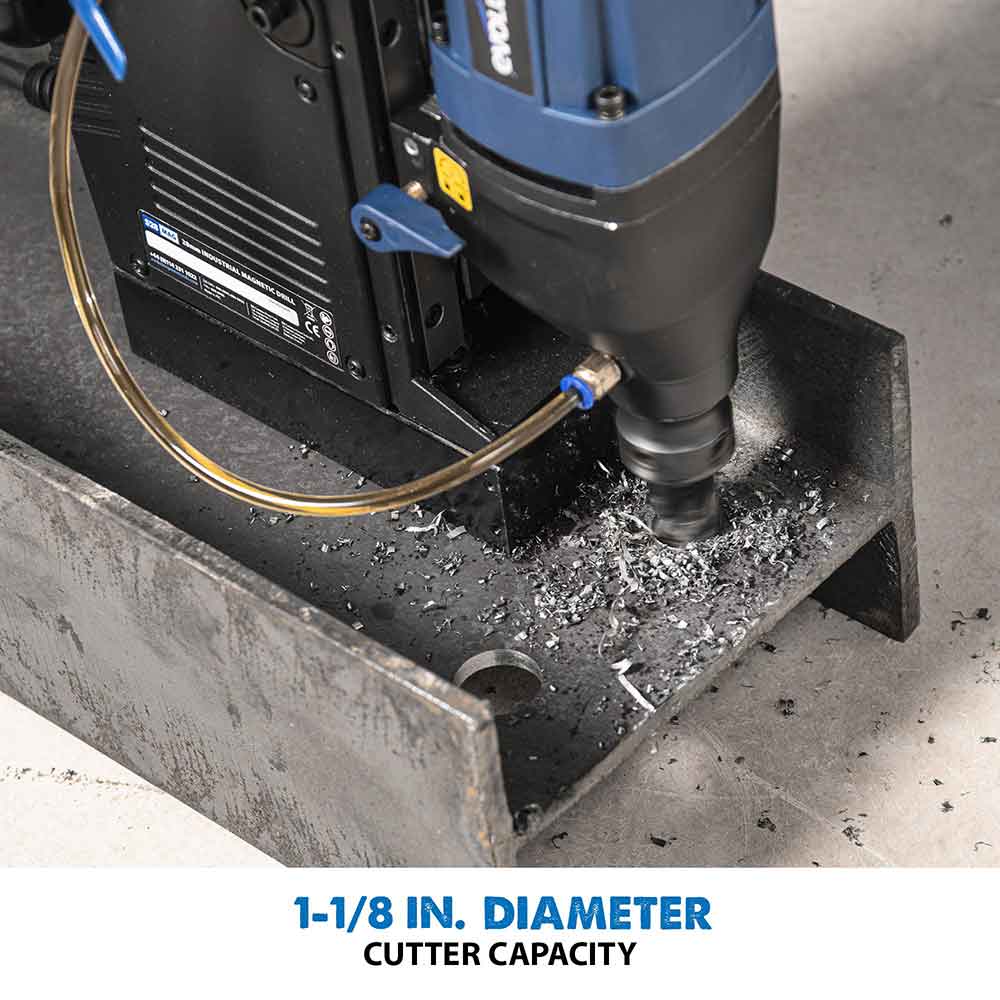

Maximum Annular Cutting Capacity	1-1/8 in. / 28 mm

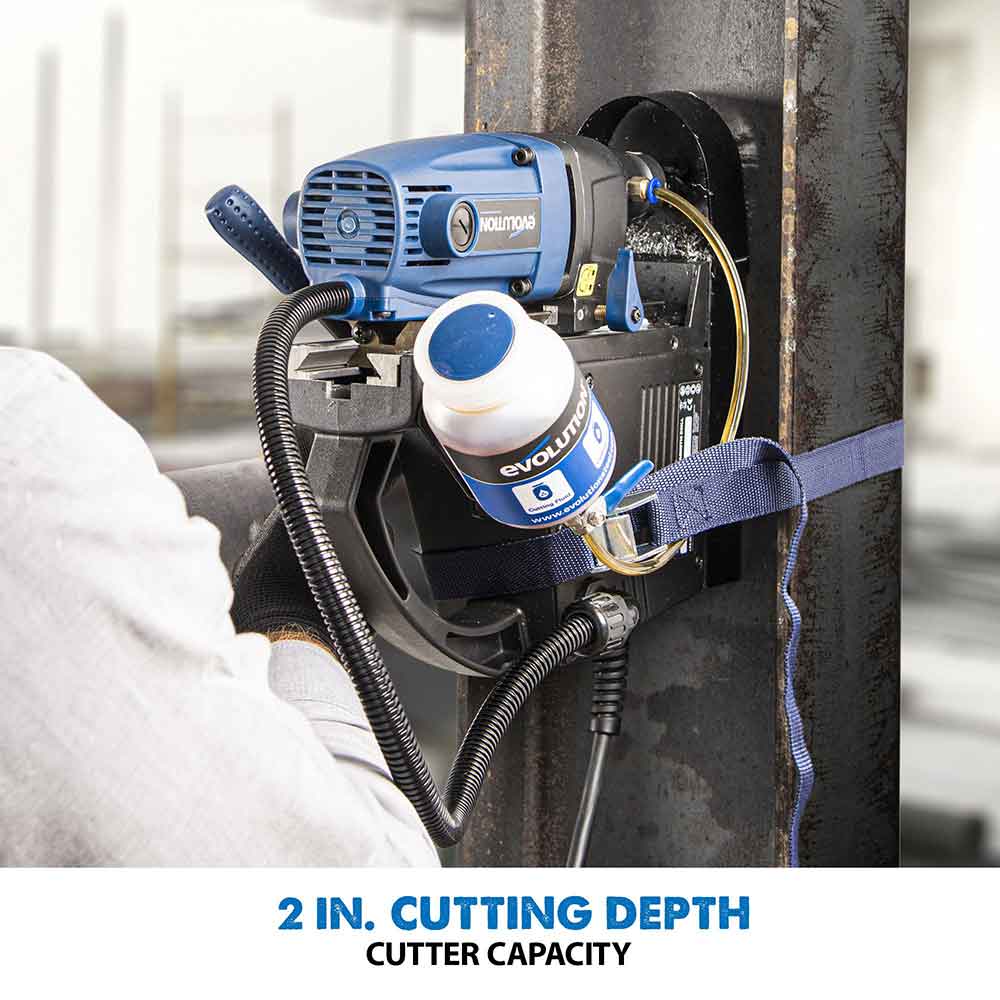

Maximum Cutting Depth	2 in.
Cutter Shank	3/4 in.

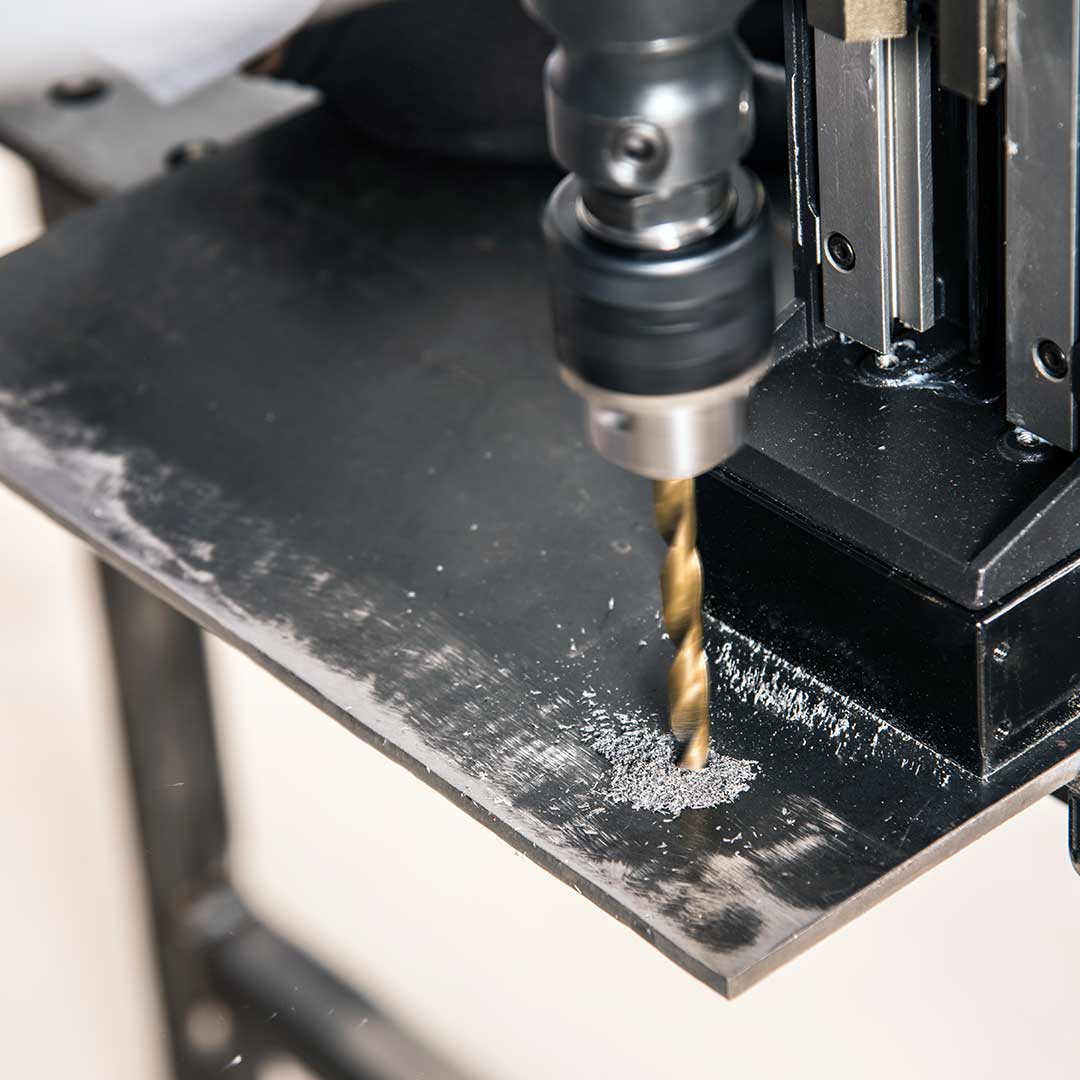

Standard Twist Drill Capacity	1/2 in.
Minimum Plate Thickness	3/8 in.



Specifications

Machine

Motor (120V 60Hz):	10A
Speed No Load:	450 rpm
Number of Speeds	1
Insulation Class	1
Cable Length:	8ft 2inch
Magnetic Adhesion	2860lbs f



Dimensions

Magnet Dimension	1-5/8 x 3-1/2 x 7-1/8 in.
Maximum Machine Height	25-5/8 in.
Minimum Machine Height	16-1/2 in.
Machine Width	7-7/8 in.
Product Weight:	26 lb

Items Included

Instruction Manual

Coolant System

Safety Guard & Fixings

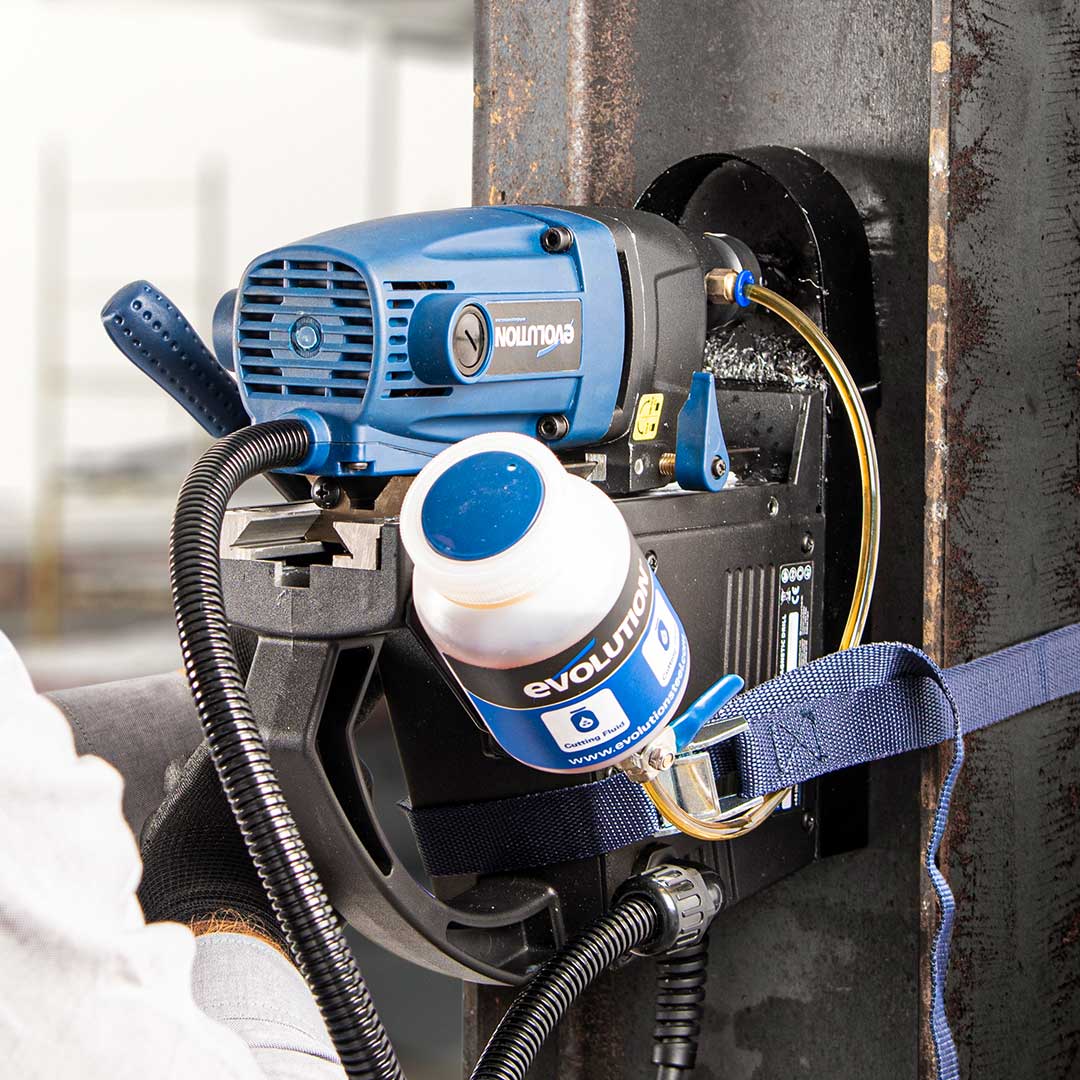

Safety Strap

Feed Handles x3

Hex Keys - x2

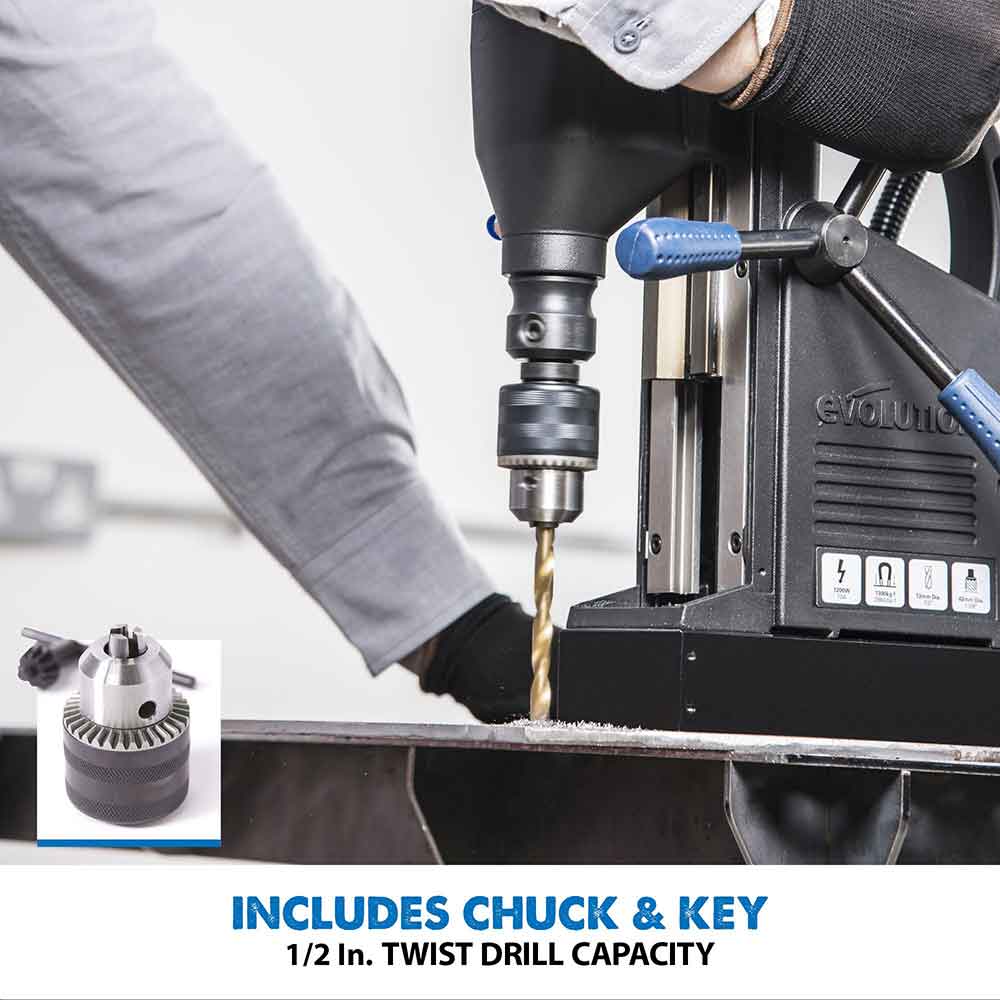

Chuck with Chuck Key

Carry Case
