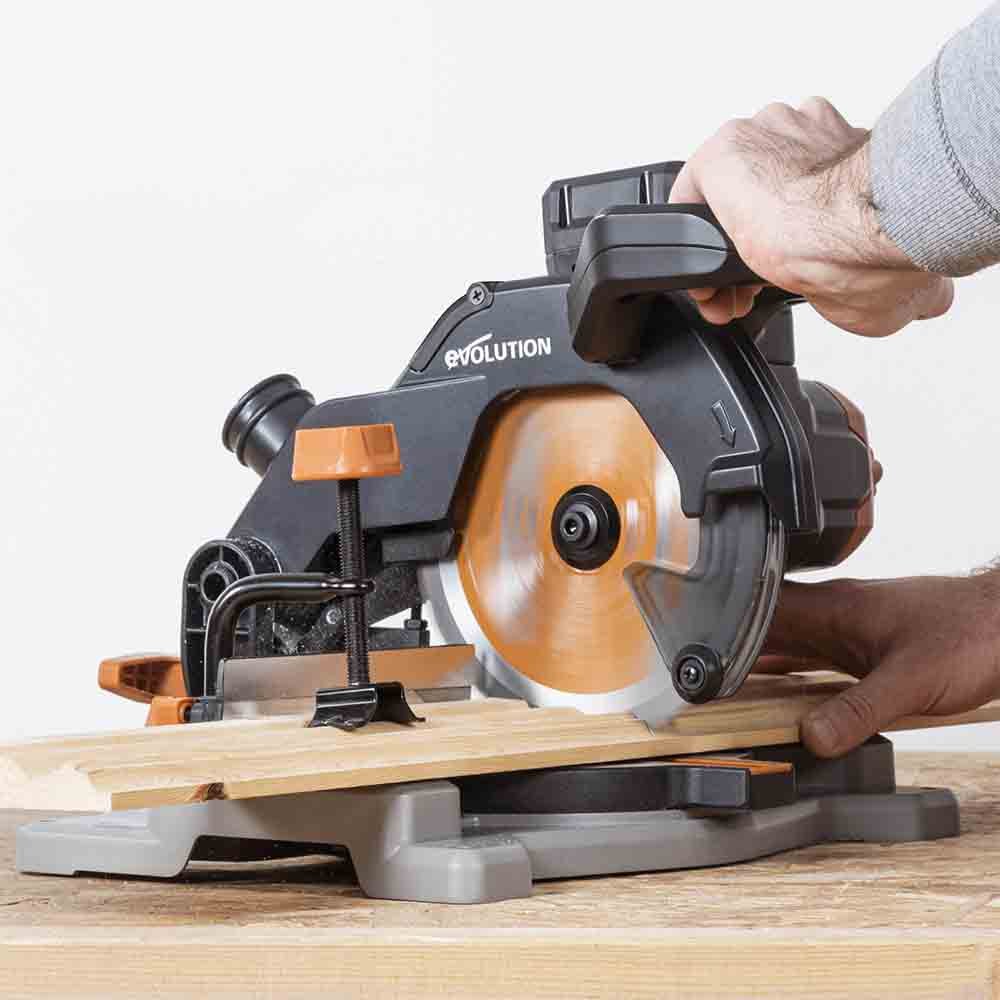

The Evolution R185CMS-Li Cordless Compound Miter Saw delivers precise cuts in new and reclaimed wood, plastics, composites, and metals. Its powerful motor, accuracy, and long run times make it the perfect tool for worksite and workshop use, and its compact size and Multi-Material blade technology make it ideal for any home project.

The R185CMS-Li 20V Li-ion Cordless Compound Miter Saw is packed with features; Multi-Material cutting technology, dust collection bag & vacuum attachment port, it's large 4 in x 1-3/4 in cross-cut capacity, and Miter & bevel capability provide real versatility. Easy accurate set-up and precision, repeatable cuts come as standard with the R185CMS-Li delivering measure once cut once accuracy.

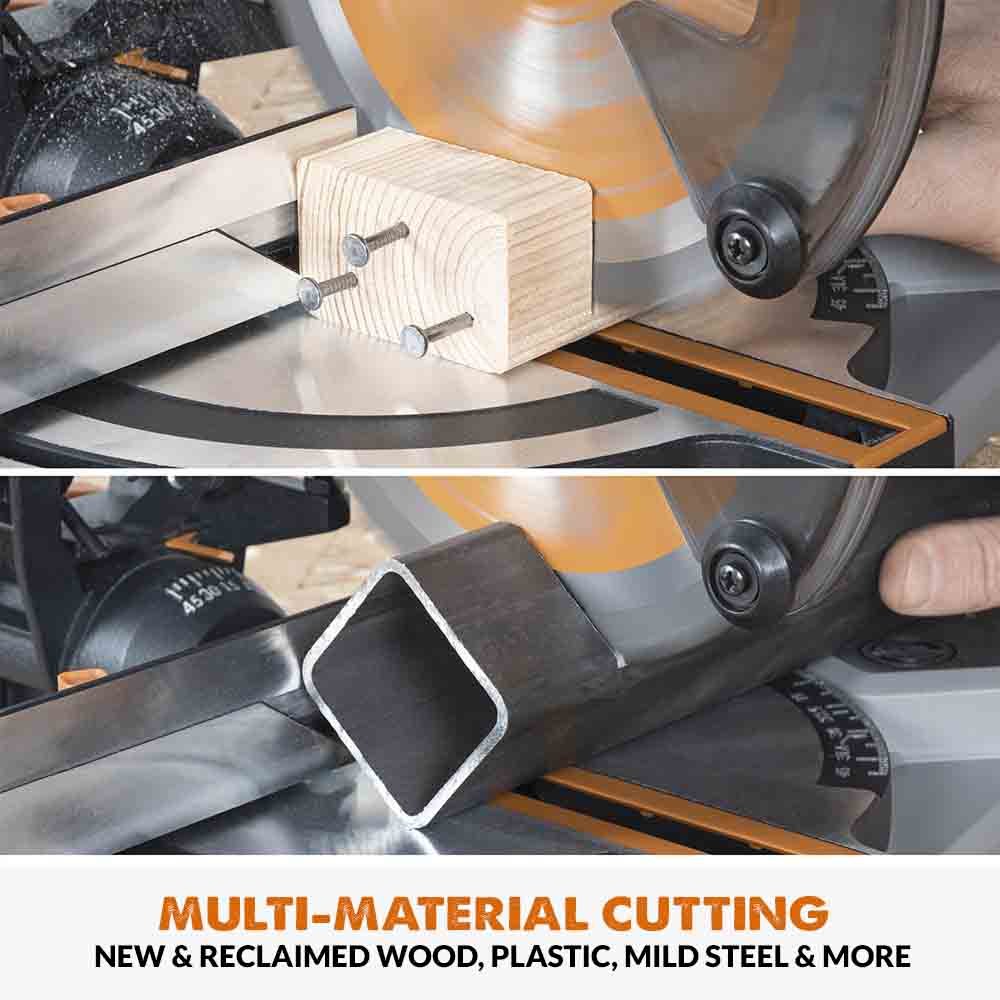

Clean and accurate cuts through new and reclaimed wood as well as cool to the touch, burr-free cuts through mild steel and non-ferrous metals with the supplied Multi-Material blade. Evolution Multi-material cutting technology delivers, cool, burr-free cuts with no heat, and virtually no sparks, and all cuts have an instantly workable finish - less fuss, and less mess.

Powered by Evolution’s 20V EXT Li-Ion battery system the R185CMS-Li delivers long run times and has the power to cut wood plastics, composites, and metals with our Multi-material blade technology. The loaded version is bundled with our R18BAT-Li4 4Ah battery pack and R18RCH-Li Single Port Rapid Charger which will take you from zero to fully charged in only 50 minutes. All of Evolution’s EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.

If you want a powerful, accurate, reliable, versatile, compact, and full-featured Cordless Compound Miter Saw which can cut any material anywhere the R185CMS-Li is a cut above the competition. Pair it with the Evolution Miter Saw Stand and you have a seriously capable portable cutting solution.

• EXT Li-ion cordless performance and versatility
• High Power 850W Brushed DC motor
• Optimized drivetrain, for maximum battery life and run time from each charge.

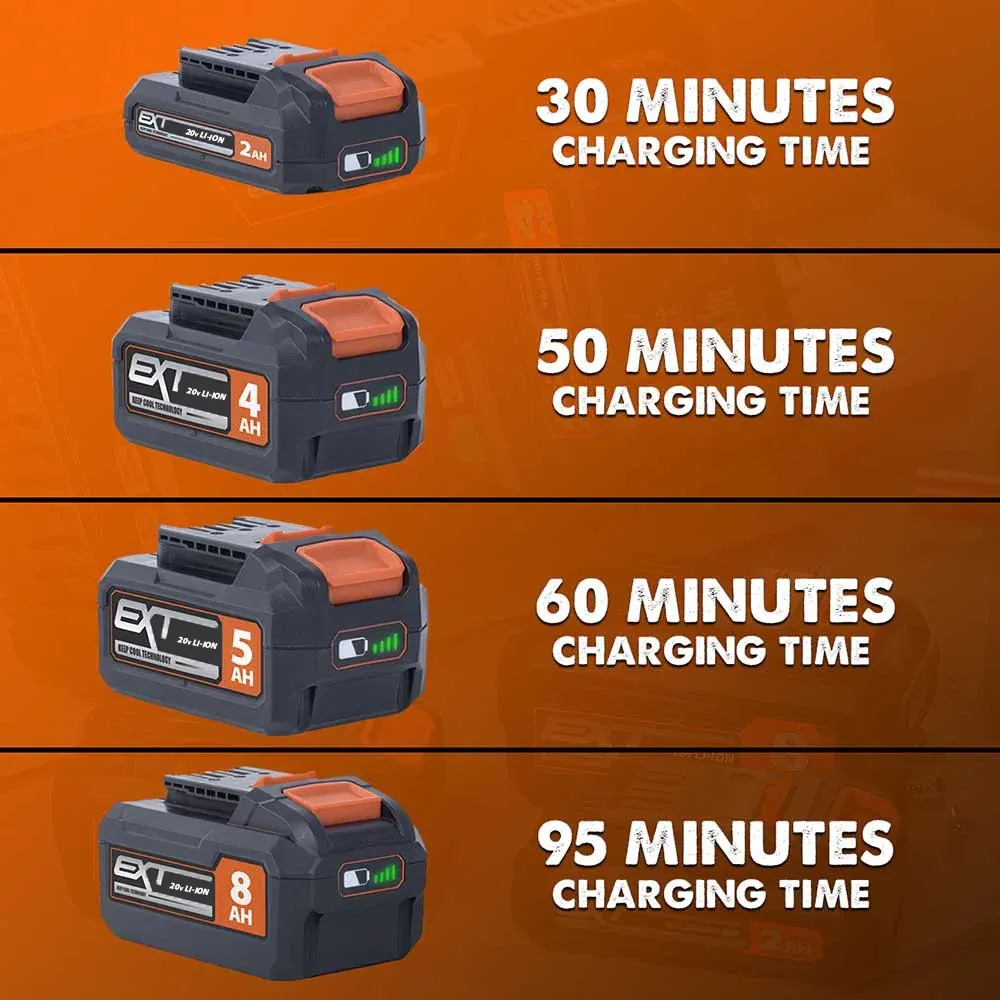

• 50 Minute charge time with 4Ah battery.
• Miter Saw Stand compatible for go-anywhere support and stability.

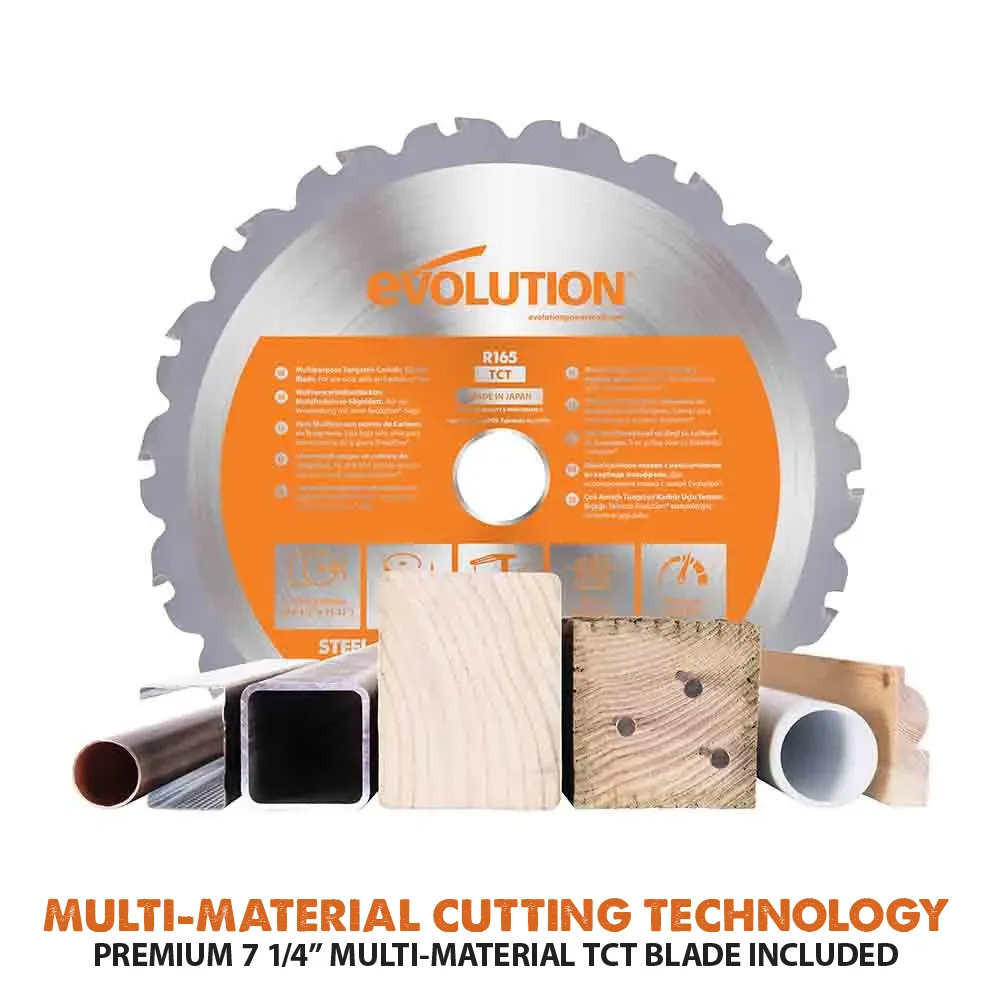

• Multi-Material: premium Japanese 20T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites, and more.
• Virtually spark-free cuts, with no heat, no burrs, and an instantly workable finish.

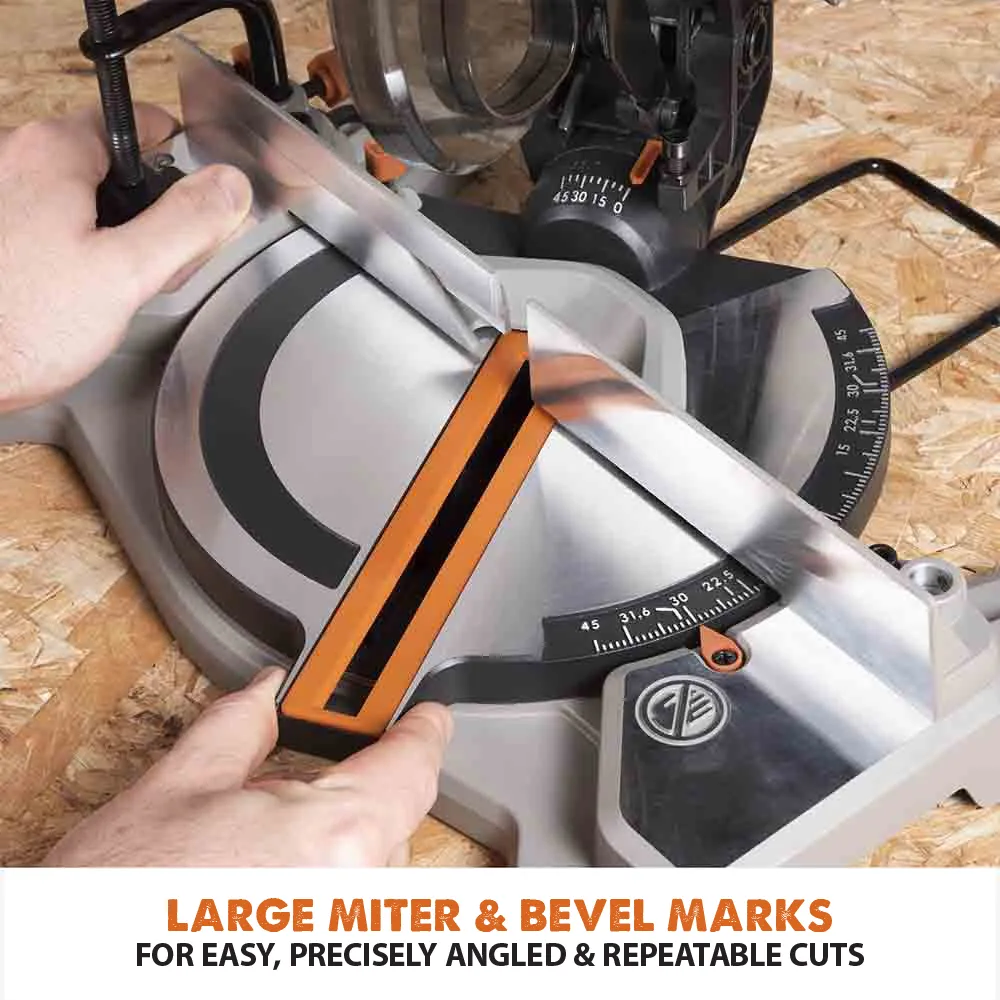

• Accurate, Bevel, Miter & Compound cuts with detent stops at the most popular angles.
• Depth Stop feature enables accurate trench cuts.

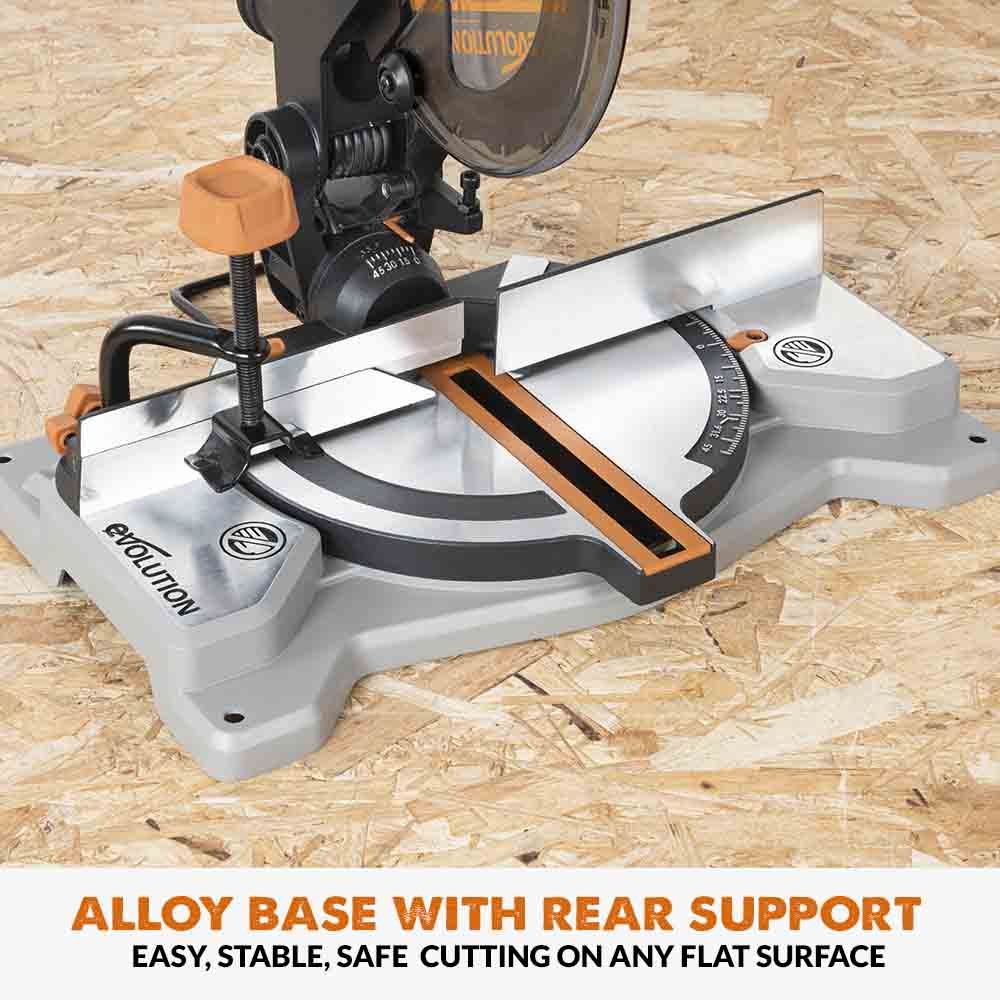

• Cast alloy base for a go-anywhere trade tough build.
• Ergonomic ambidextrous handles for easy control
• Split Rear Fence For Compound cuts
• Soft Start & quick-stop Electronic Blade Brake For Safety

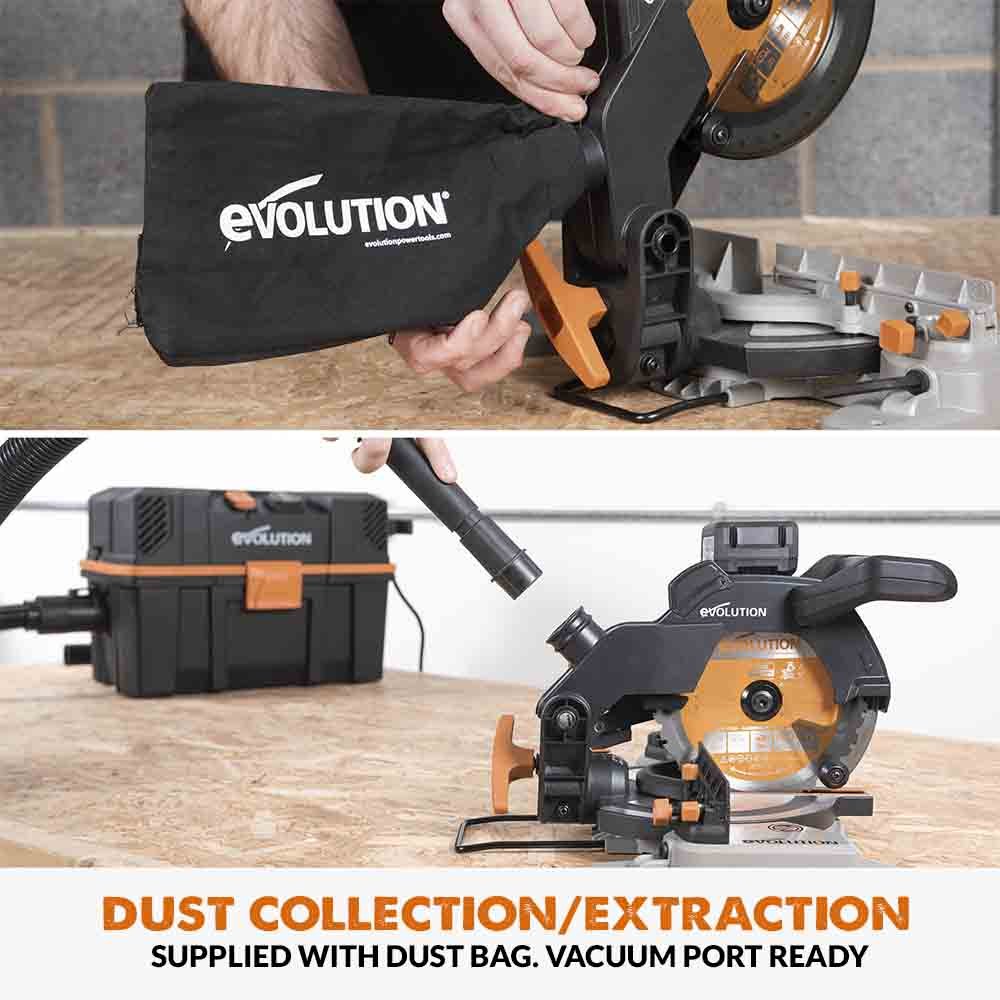

• Vacuum-compatible dust extraction with R11VAC-LI
• Dust Bag included

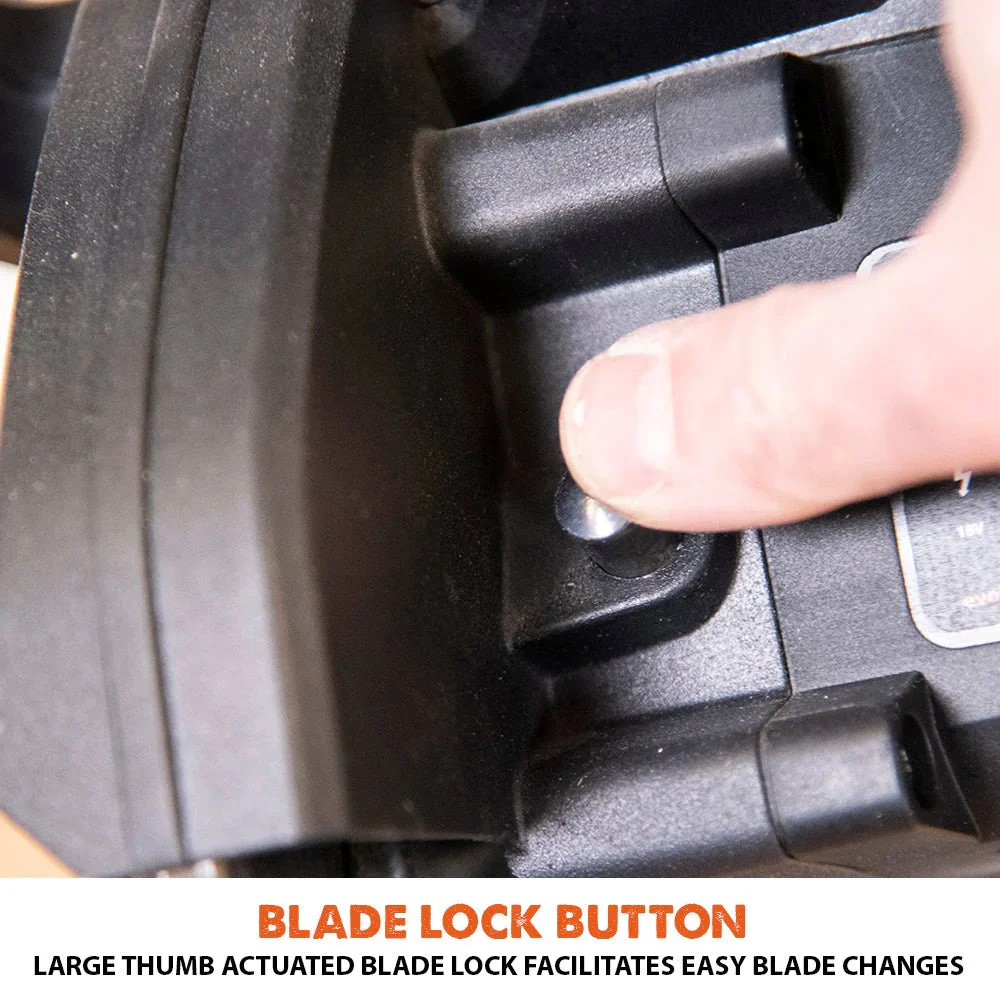

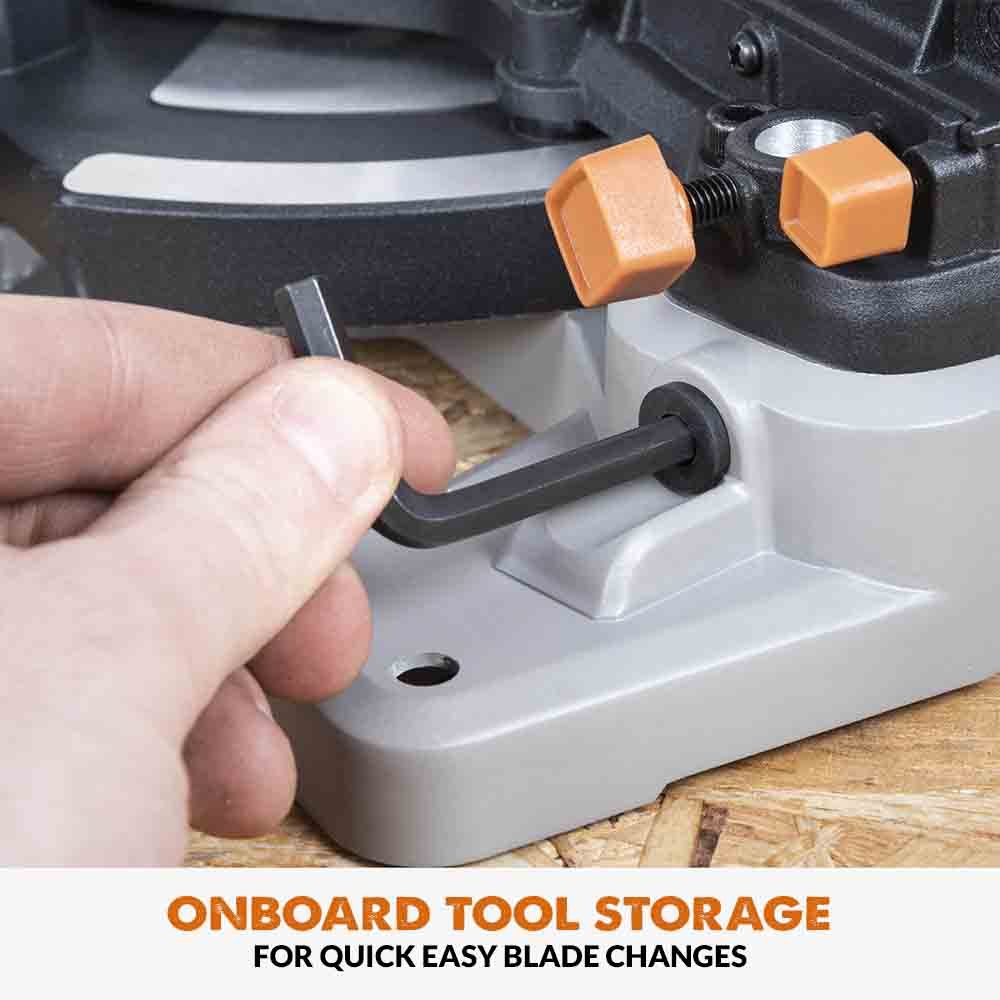

• Single bolt blade change, quick and easy replacement.

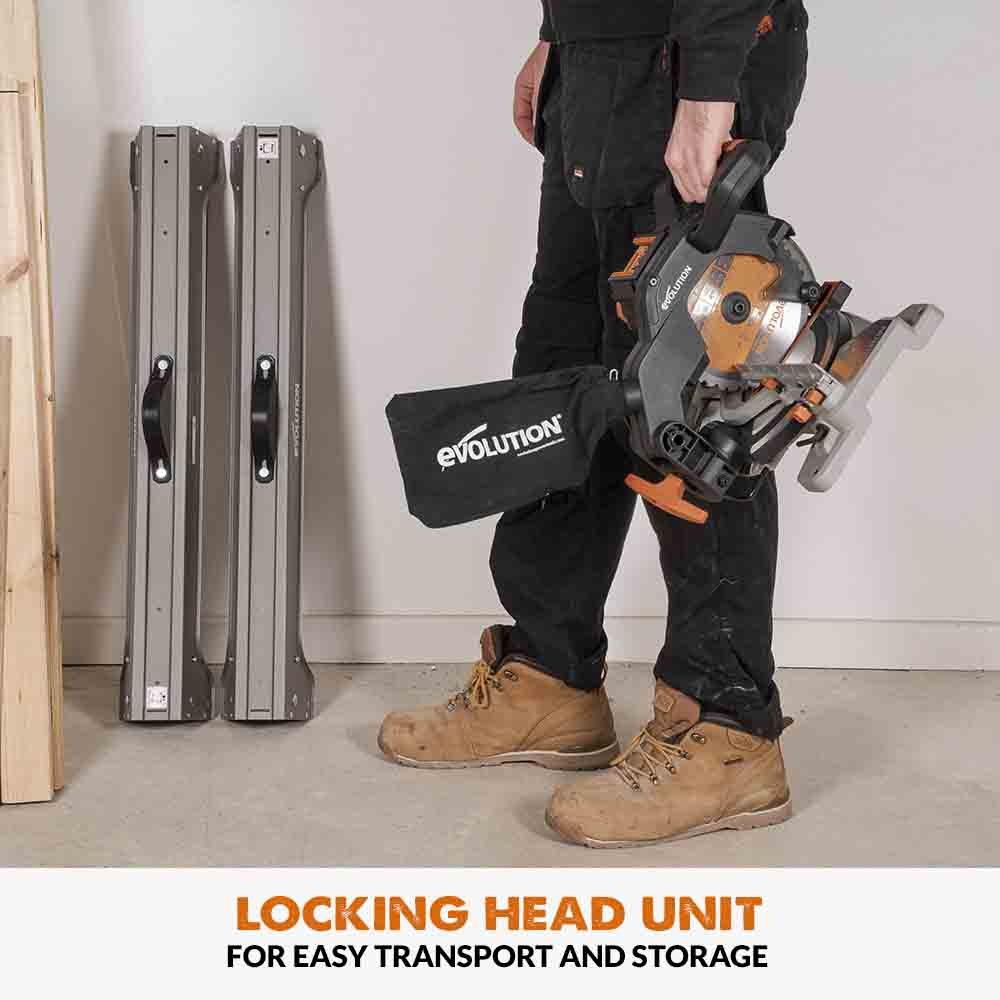

• Integrated Ergonomic Carry Handles
• 3-Year limited warranty**



Cutting Capacity

Mild steel Plate - Max Thickness	1/4 in
Mild Steel Tube Max Wall Thickness	1/8 in
Minimum Size Workpiece (smaller pieces require  support)	5 x 1-1/8 x 1/8 in
0º Miter x 0º Bevel	4 x 1-3/4 in
45º Miter x 0º Bevel	3  x  1-3/4 in
0º Miter x 45º Bevel	4 x 1-1/2 in
45º Miter x 45º Bevel	3 x 1-1/2 in
Miter Range	45°- 45°
Bevel Range	0°- 45°
Blade Diameter	7-1/4 in
Bore Diameter	3/4 in
No of Teeth	20T
Kerf	0.066 in
Sound pressure level Lpa	82.4db (A); K=3db (A))
Sound power level Lwa	95.4 db (A); K=3db (A)
Uncertainty	3db (a)



Specifications

Machine

Name	R185CMS-LI
Product Code	088-0004
Voltage	20v -50Hz
Power	850W
No Load Speed (min-1 rpm)	4200rpm
Tool Dimensions	11 x 16-3/4 x 13-5/8 in
Net Weight	13 lbs / 16.5 lbs



Blade

Blade Size	7-1/4 in
Blade Bore	3/4 in
Bore Diameter	3/4 in
No of Teeth	20T
Kerf	0.066 in
Sound pressure level Lpa	84.5 db (A); K=3db (A)
Sound power level Lwa	97.5 db (A); K=3db (A)
Uncertainty	3db (a)



Items included

	Bare	Loaded
Miter Saw	x	x
Instruction Manual	x	x
Miter Saw Stand	x	x
Multi-Material 20T TCT Blade	x	x
Top Clamp	x	x
Hex Key M6	x	x
Dust Port Adaptor	x	x
Dust Bag	x	x
2Ah Battery
4Ah Battery		x
5Ah Battery
8Ah Battery
Single Port Fast Charger		x
Dual Port Fast Charger
