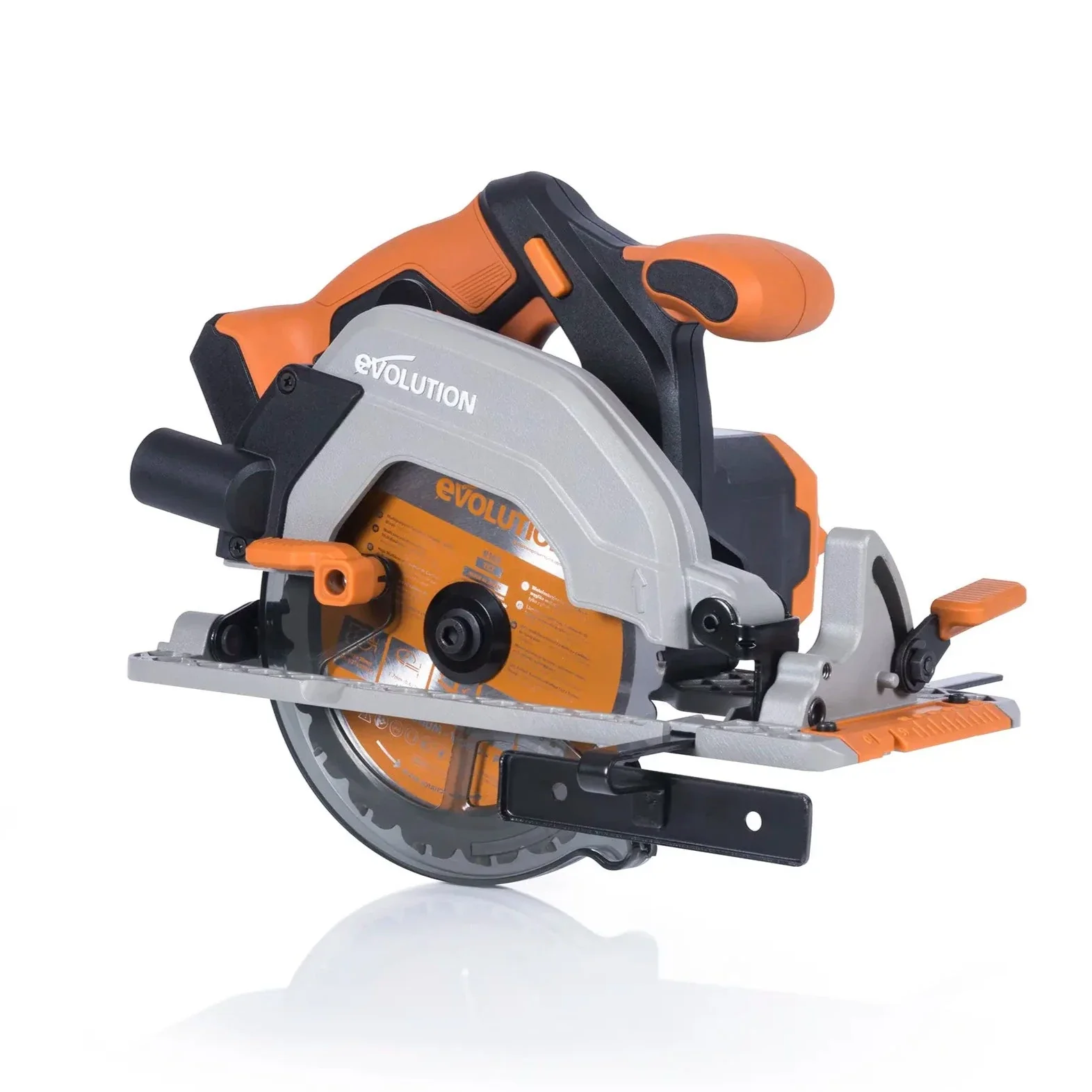

The Evolution R165CCS-Li Cordless Circular Saw delivers precise cuts in new and reclaimed wood, plastics, composites, and metals. Its powerful motor, accuracy, and long run times make it the perfect tool for taking on any worksite, and its compact size and Multi-Material blade technology make it ideal for any home project.

The R165CCS-Li 20V Li-ion Cordless Circular Saw is packed with features; Multi-Material cutting technology, dust collection & vacuum attachment port, its best-in-class adjustable 2-1/2 inch depth of cut., and 0-50° bevel capability provides real versatility. Clean and accurate cuts through new and reclaimed wood as well as cool to the touch, burr-free cuts through mild steel and non-ferrous metals with the supplied Multi-Material blade.

With first-rate ergonomics, a see-through polycarbonate blade guard, a soft start, and quick-stop electronic safety brake features, the R165CCS-Li is a breeze to use. Powerful and accurate with huge run times it's perfect for tradesmen who need a reliable, precision tool that won't break the bank. For home use, Evolution's Multi-material blade technology delivers cut after cut through wood, metals, plastics, and more making it the most versatile saw you can own.

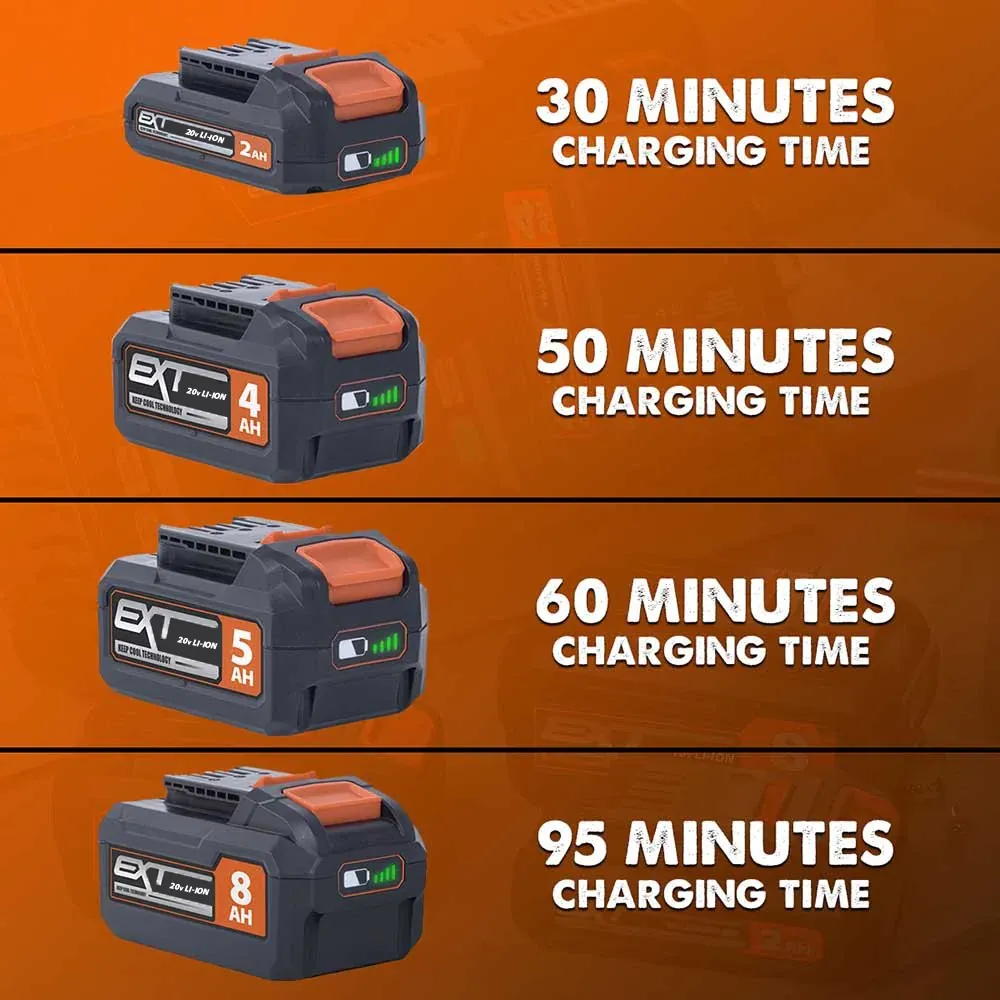

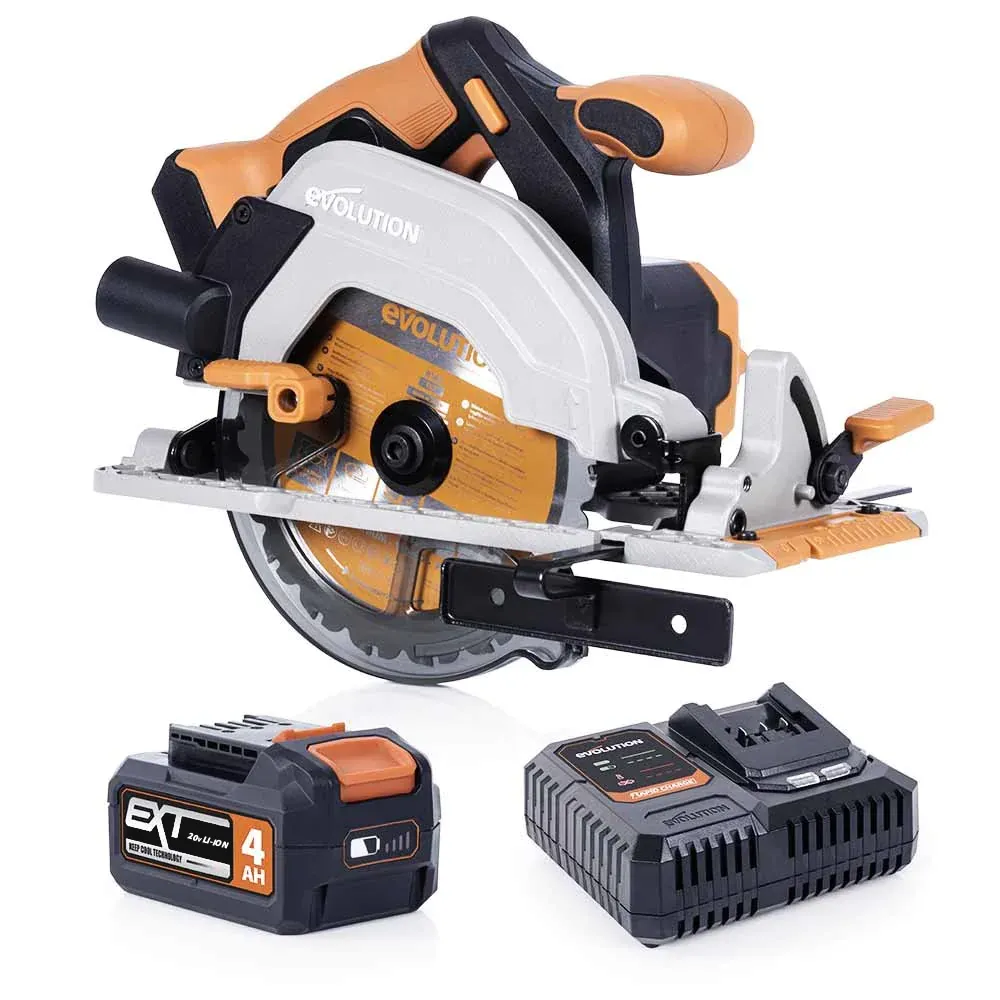

Powered by Evolution’s 20v EXT Li-Ion battery system the R165CCS-Li delivers long run times and has the power to cut any material anywhere. The loaded version is bundled with our R18BAT-Li4 4Ah battery pack and R18RCH-Li Single Port Rapid Charger which will take you from zero to fully charged in only 50 minutes and is capable of cutting through more than 164ft of 1/2 inch thick hardwood ply from a single charge. All of Evolution’s EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.

If you want a powerful, versatile, cordless Circular Saw with best-in-class adjustable cutting depth, 0-50º bevel cutting ability, and ready to cut any material anywhere the R165CCS-Li is a cut above the competition.

• EXT Li-ion cordless performance and versatility
• High Power 850W Brushed DC motor
• Optimized drivetrain for maximum battery life and run time per charge

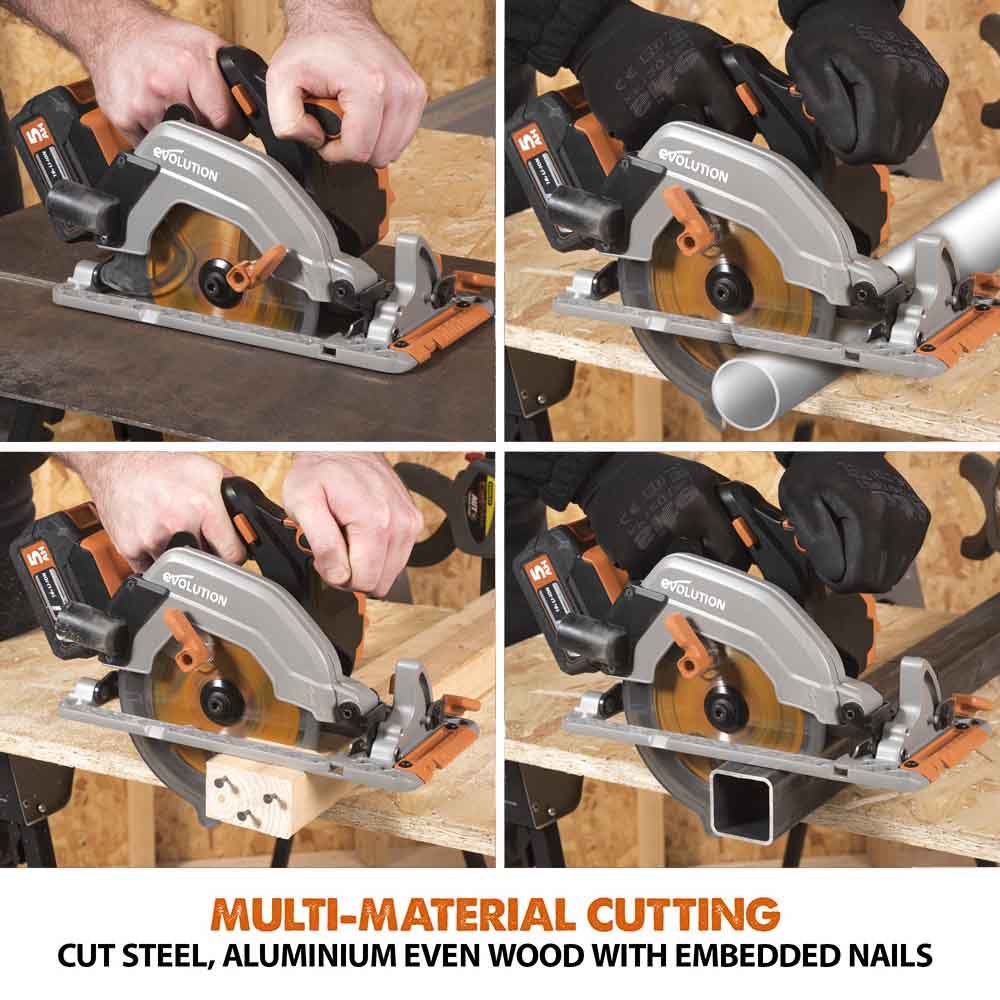

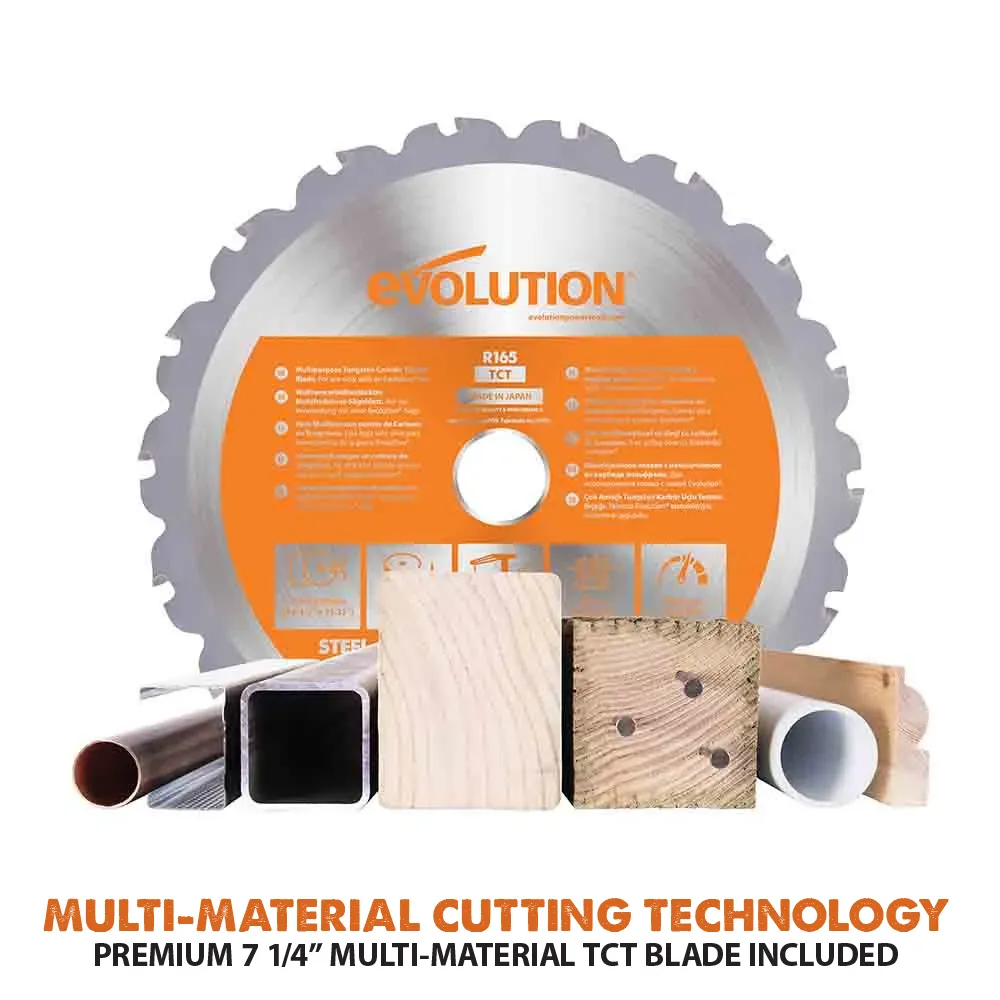

• Multi-Material: premium Japanese 20T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites, and more

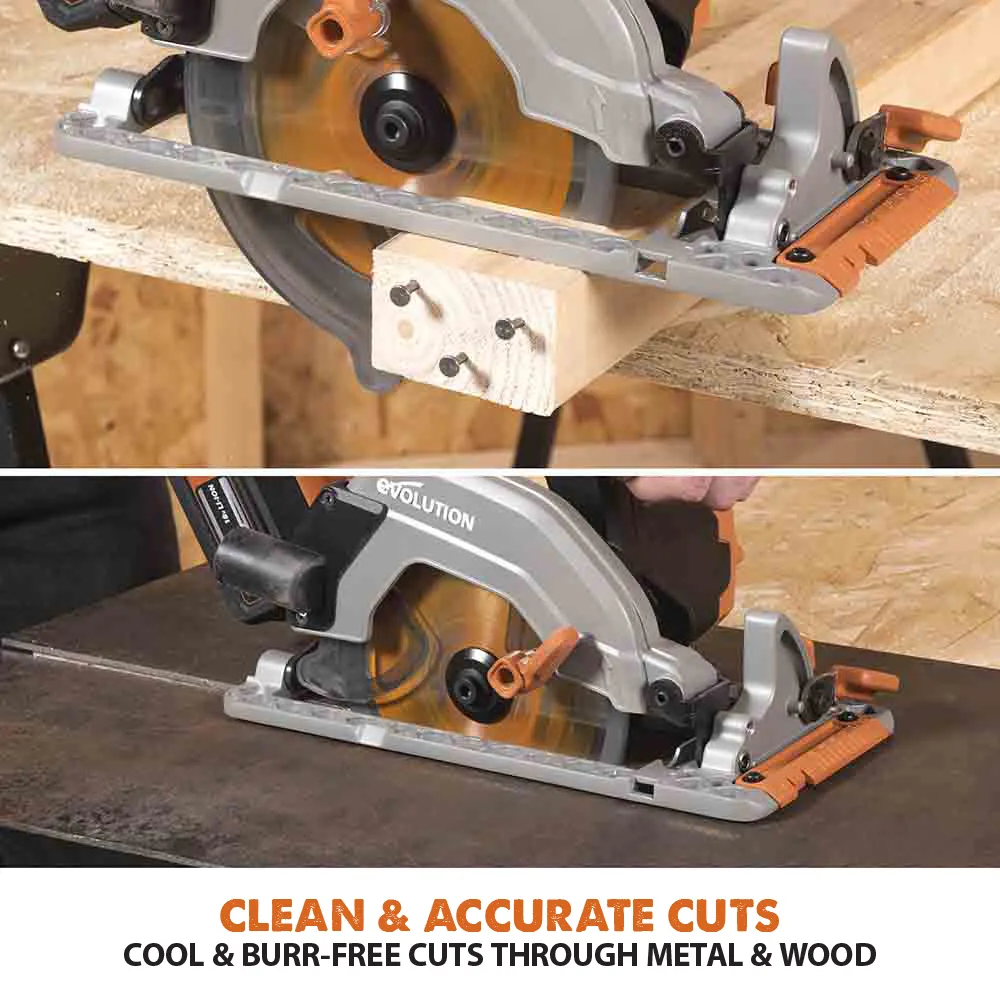

• Virtually spark-free cuts, with no heat, no burrs, and an instantly workable finish
• Cast alloy base, trade tough build.

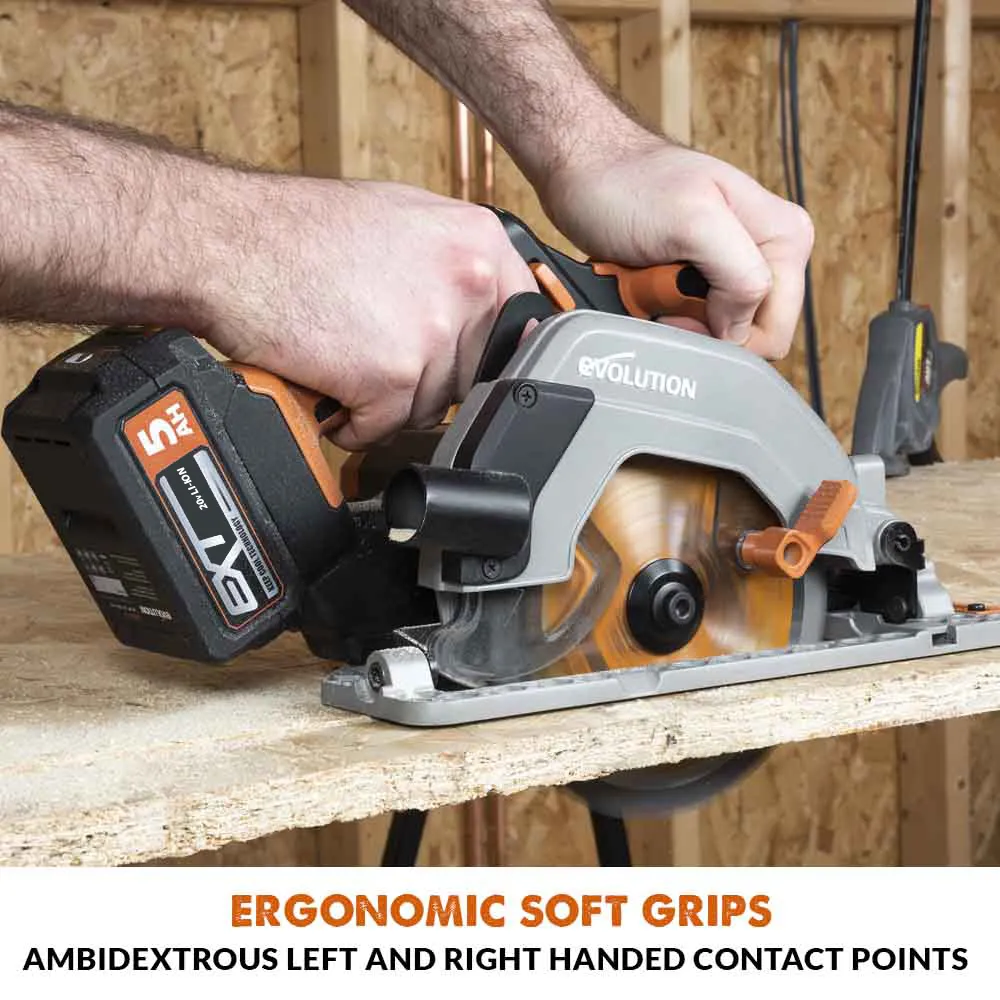

• Ergonomic ambidextrous soft grip handles for control and versatility

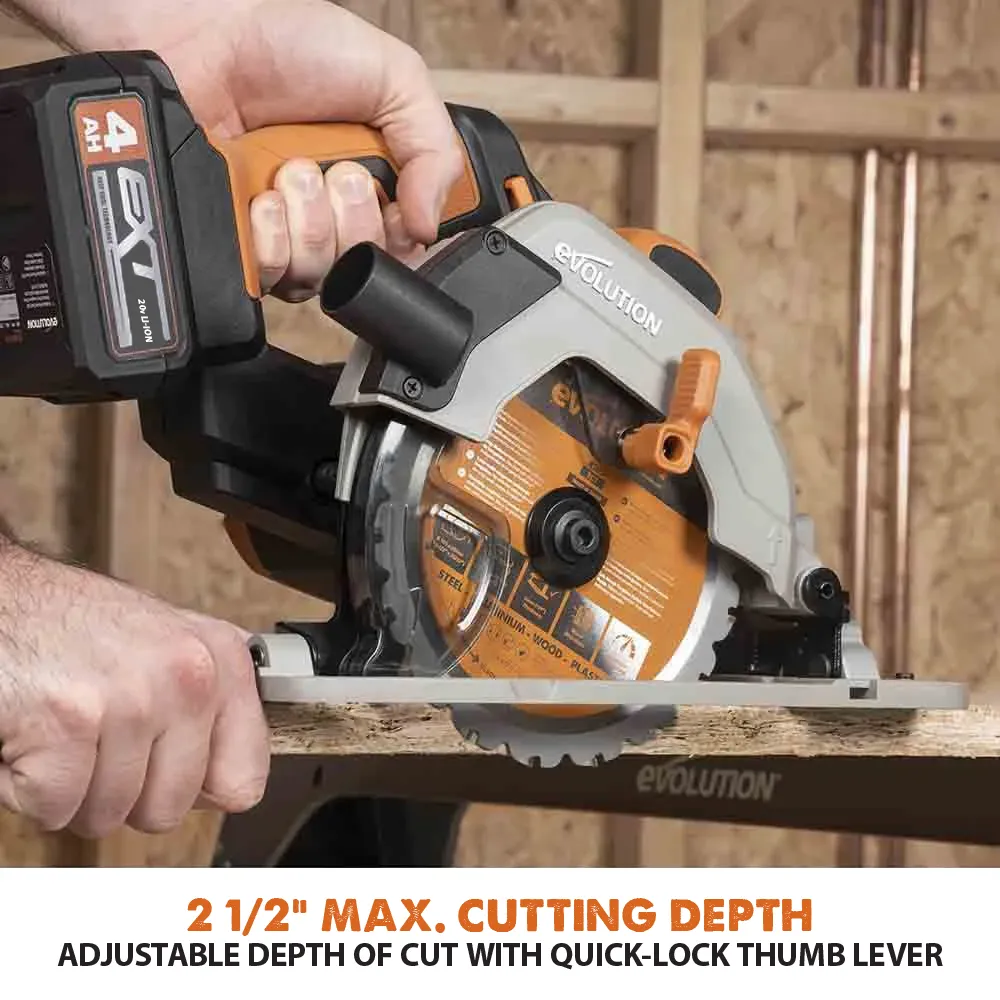

• Best in class, adjustable adjustable 2-1/2 inch depth of cut.

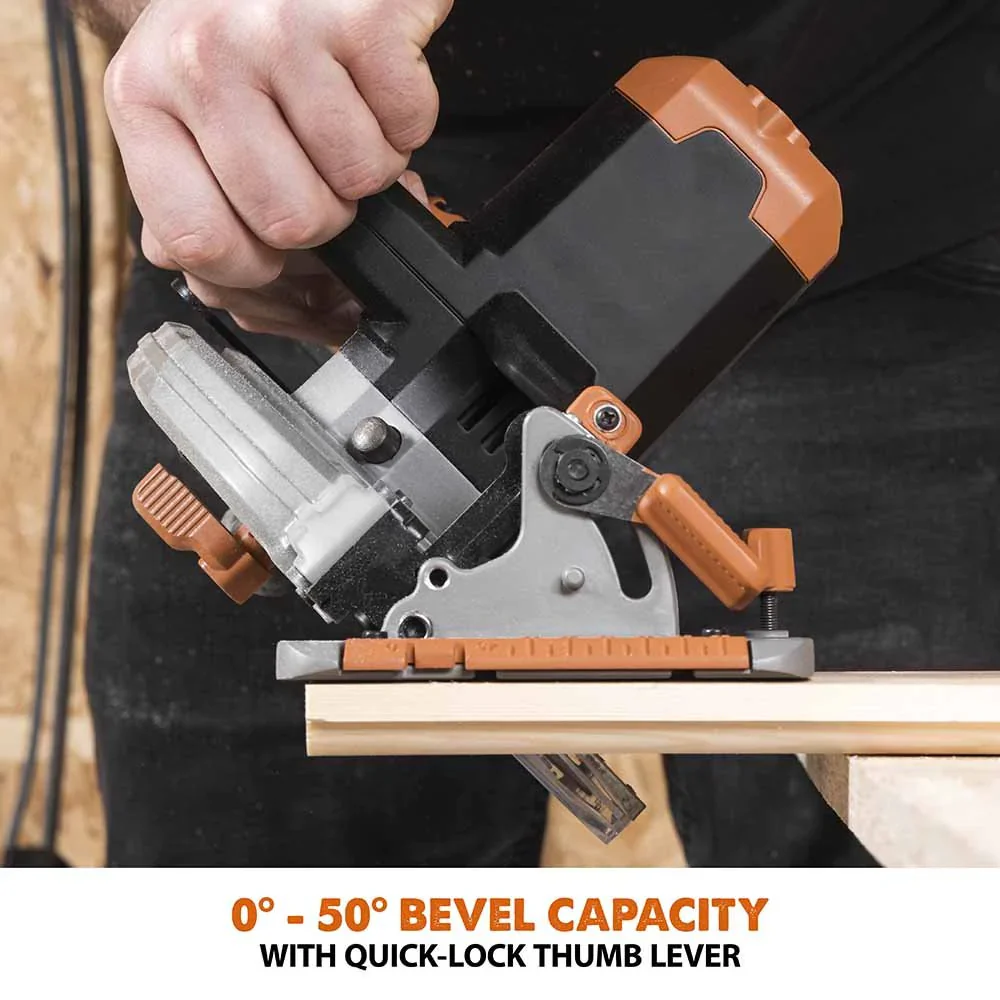

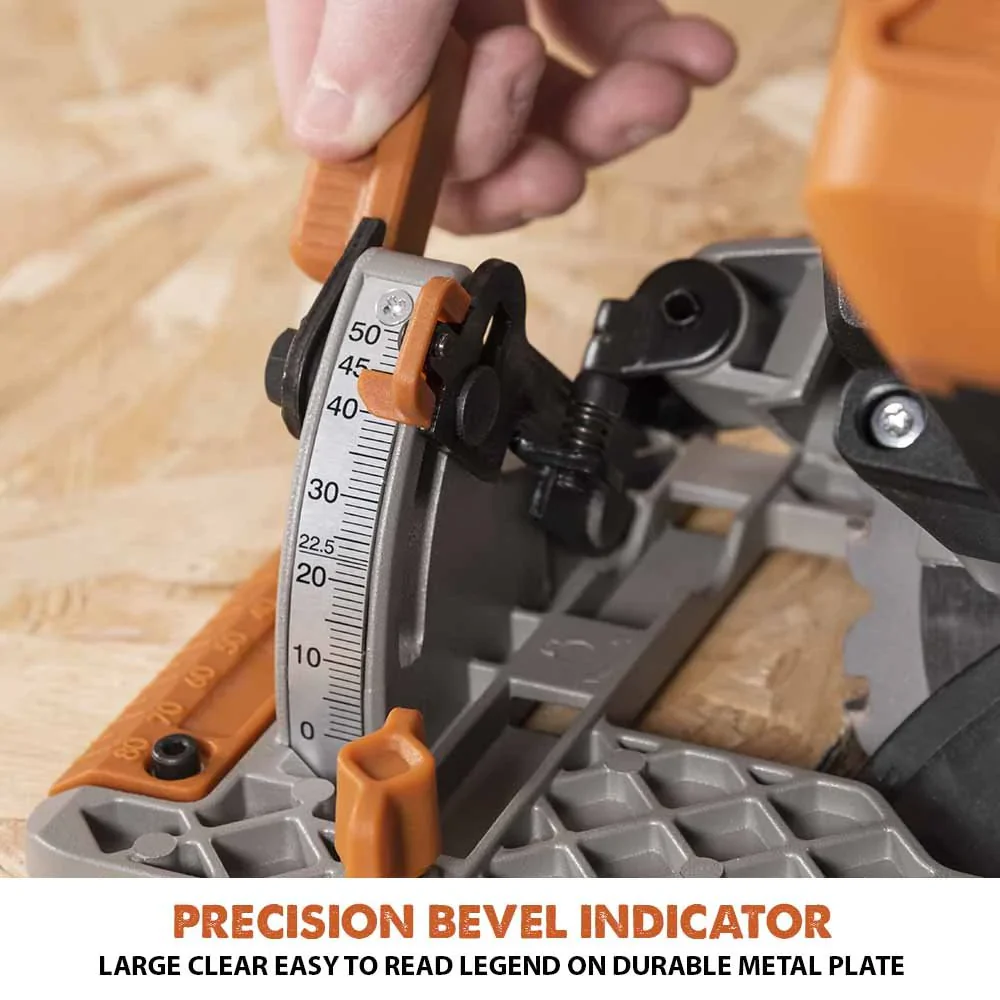

• 0-50° adjustable bevel with virtual blade pivot for perfectly measured cut width

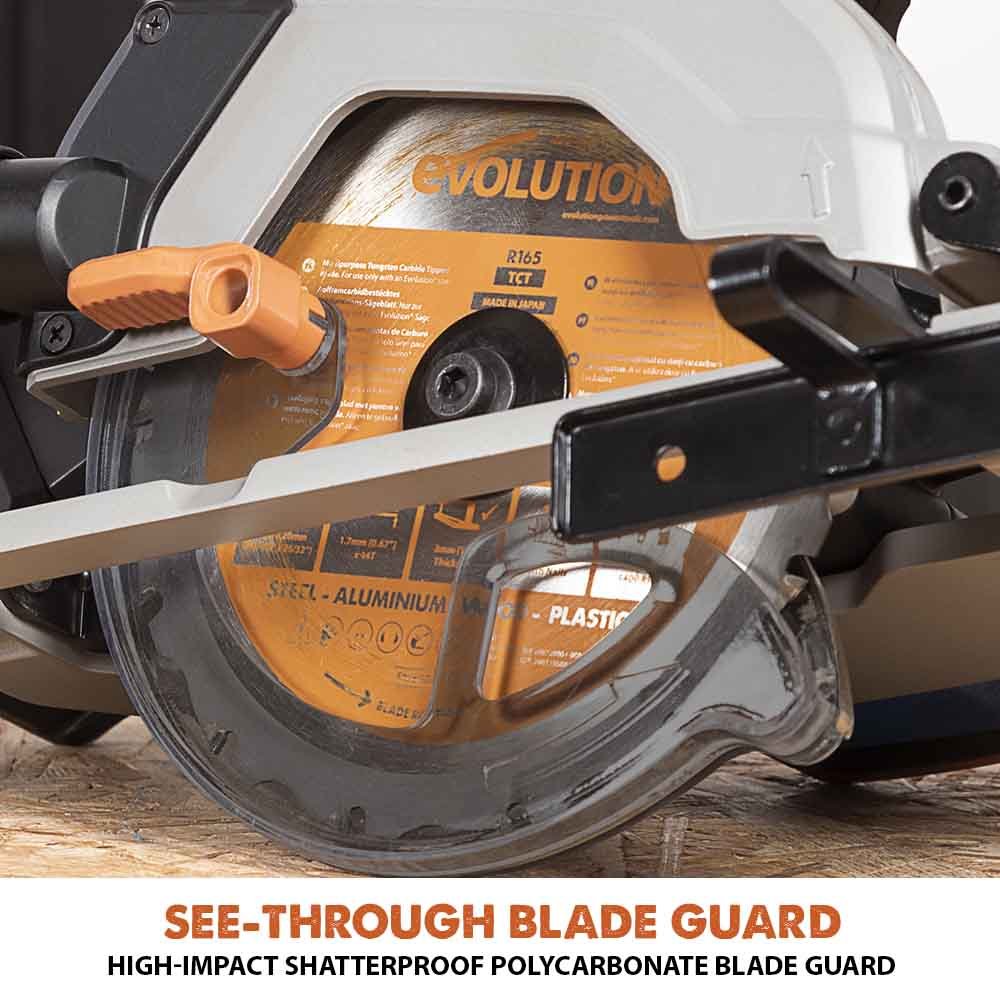

• Shatterproof, see-through polycarbonate blade guard for safe, easy cut alignment

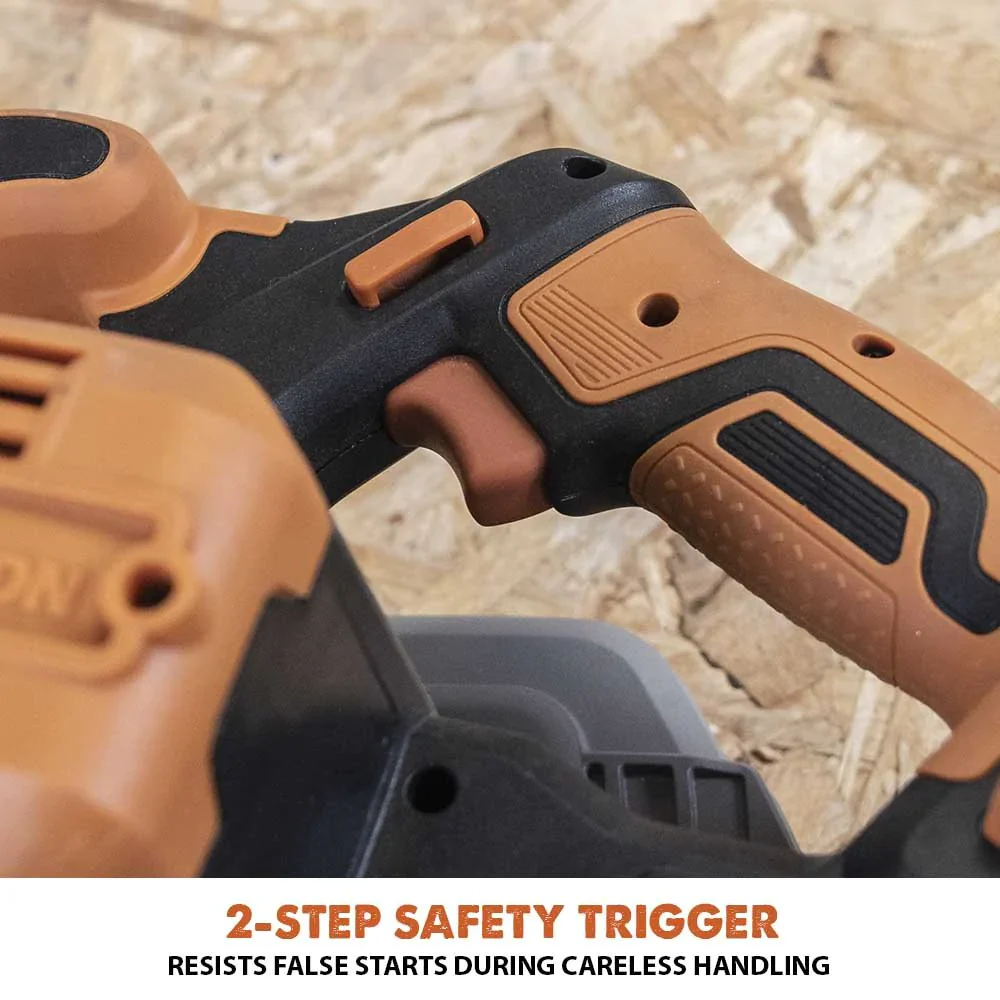

• Soft Start & Quick-Stop Electronic Blade Brake and 2-Step safety trigger for safe motor start-up

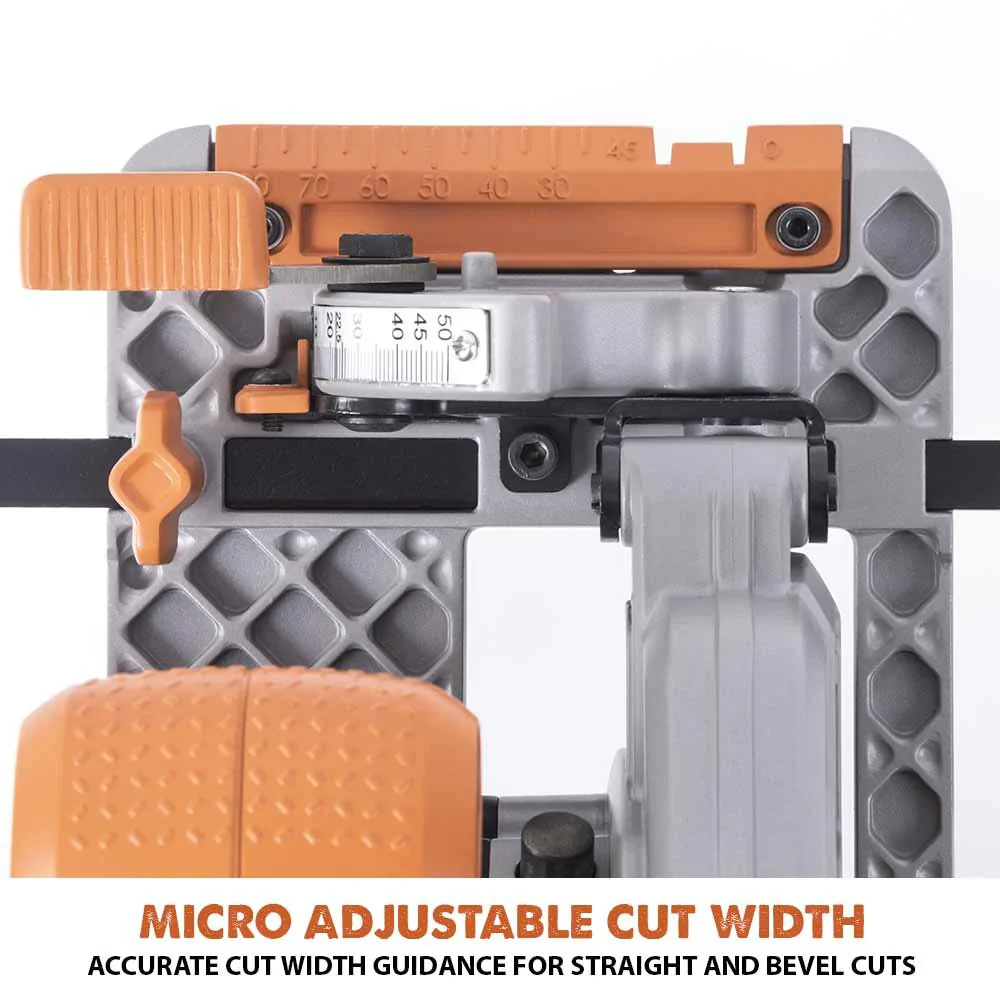

• Micro-adjustable cut width guide for precision full-length board cuts

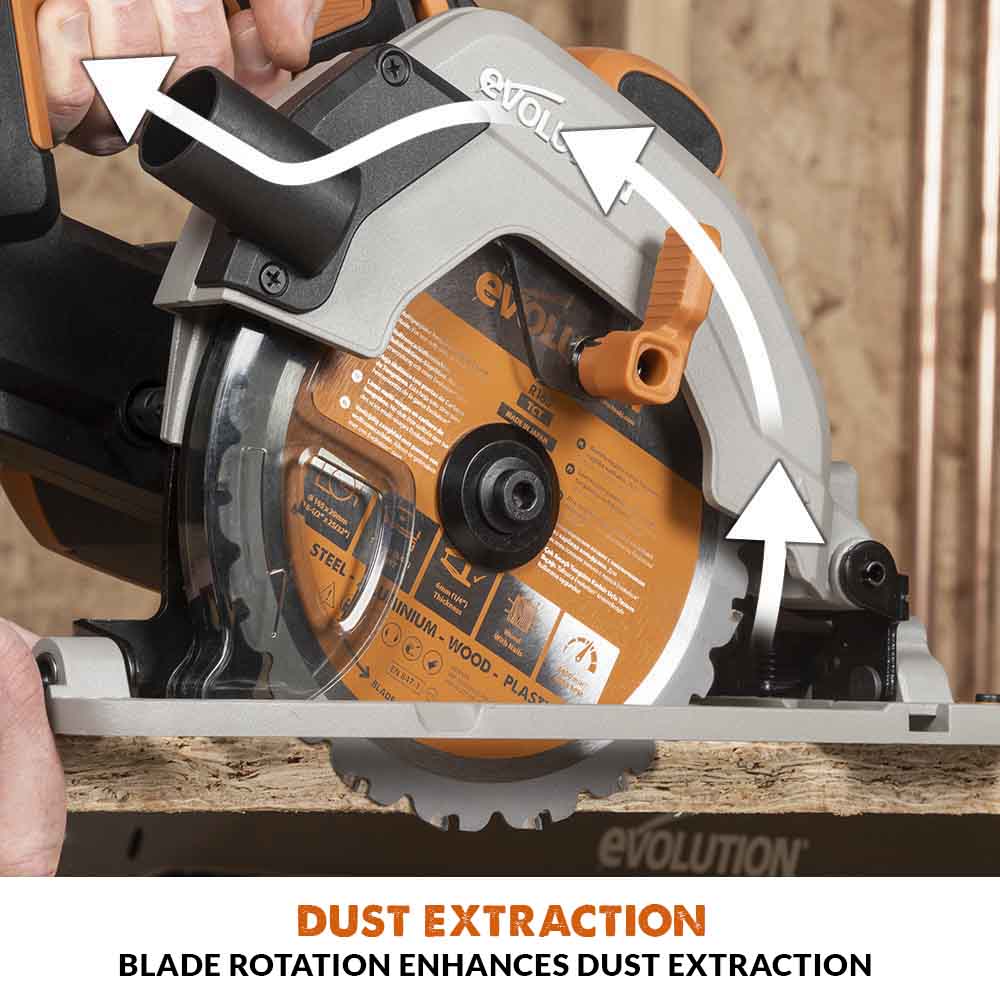

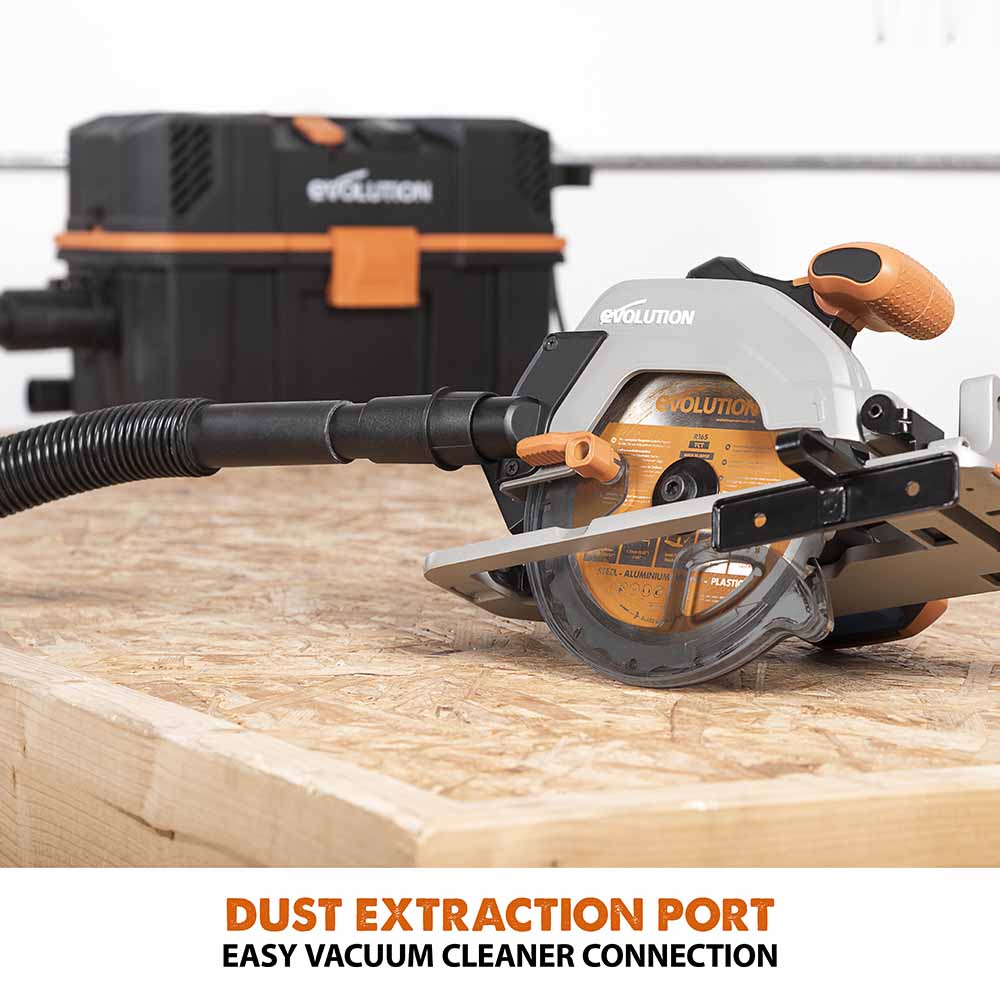

• Vacuum-compatible dust extraction

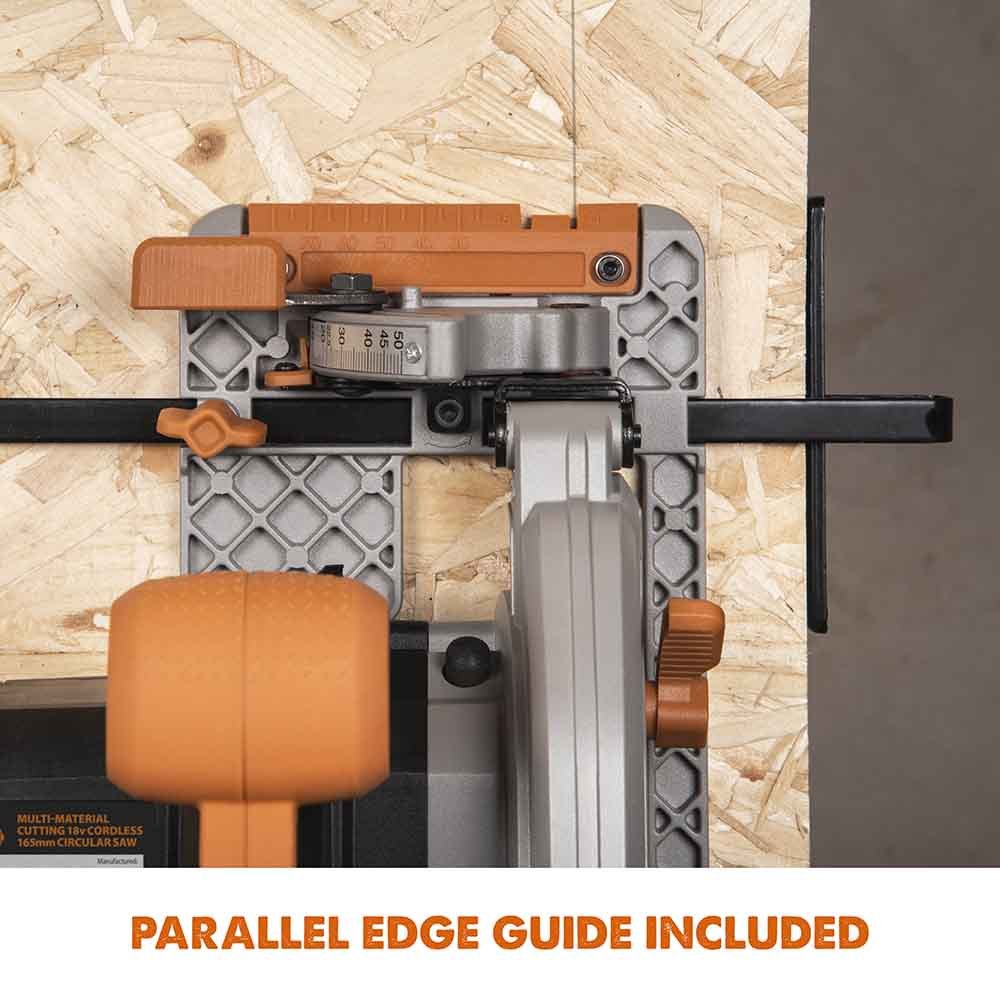

• Reliable straight, smooth, and square cutting with a parallel edge guide
• 3-Year limited warranty
• NB- Circular Saw carry bag not included.

Cutting Capacity

Max Cutting Thickness (plate)	1/8 in
Max Wall Thickness	1/8 in
Max 90 degree	2-4/25 in
Max 45 Degree	1-1/2 in
Max 50 degree	1-1/4 in



Specifications

Machine

Voltage	20V
Power	850W
No Load Speed (min-1 rpm)	4600rpm
Net Weight	7.5 lbs
Dust port Adaptor Size	1-9/32 In.
Maximum Bevel Capacity (degrees)	50°



Blade

Blade Diameter	6-1/2 in
Max Speed (min-1 rpm,)	5200rpm
Bore Diameter	25/32 in
Kerf	0.066 in
Noise & Vibration Data
Sound pressure level Lpa	87.2 db (A); K=3db (A)
Sound power level Lwa	92 db (A); K=3db (A)
Vibration	ah,w=2,302m/s2 Main Handle
	ah,w=2,218m/s2 2nd Handle

Items Supplied

Instruction Manual	Bare	Loaded
Multi-Material TCT Blade (R165TCT-18CS)	x	x

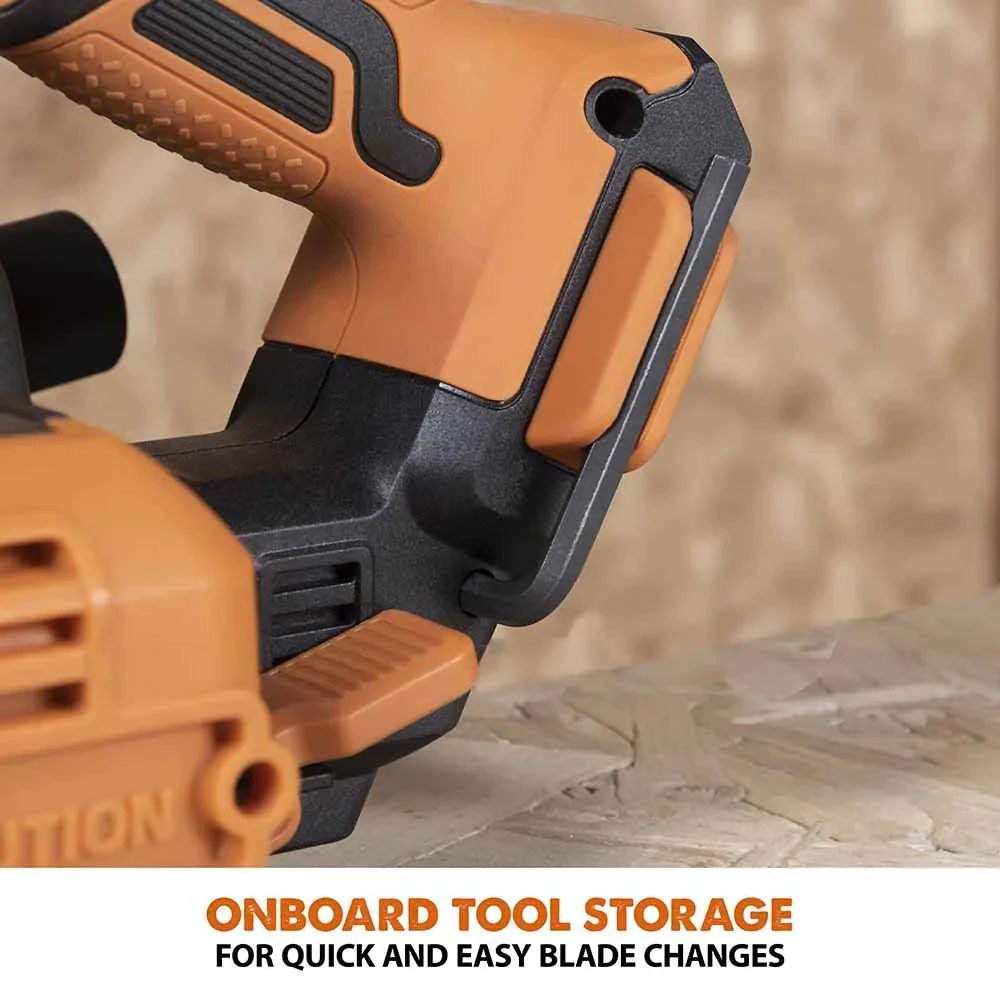

Hex Key (blade change)	x	x
Parallel Edge Guide	x	x
Dust Port Adaptor	x	x
Dust Hose Adaptor	x	x
2Ah Battery
4Ah Battery		x
5Ah Battery
8Ah Battery
Single Port Fast Charger		x
Dual Port Fast Charger
